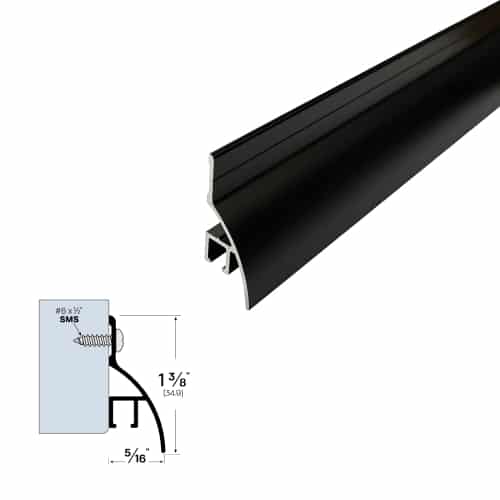

Surface Mounted Rain Drip with Slot for Door Sweep - Mounting Thickness of 5/16" (8.0mm)
Door sweep EC712, with a rubber blade, surface mounted, a rain drip with a slot for a sweep. Closes the gap under the door against drafts, dust, noise and pests. Cut to length from 24" to 144".
$11.81
Sale price
$11.81
Regular price
Length 24"Finish Black
Made to order — ships in 7 business daysFinal sale. See return policy
Discount per Quantity
1+
$11.81
5+
$10.63
save 10%
11+
$10.04
save 15%
26+
$9.45
save 20%
51+
$8.86
save 25%
Key specifications
- Surface-mounted rain drip with a slot for a door sweep — both parts sit in one clean line
- Helps keep out dust, drafts, pests, and some sound at the bottom of the door where it gets in
- Shields the bottom of the door and the sweep unit from rain running down the face of the door
- Slot accepts a door sweep, not included — order the sweep that matches the gap you measured

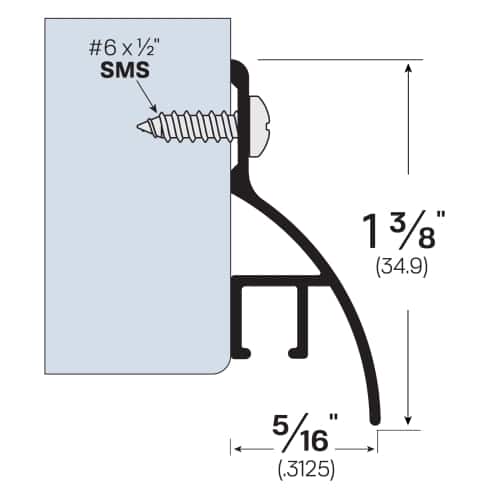

- Mounting thickness of 5/16" (8.0mm) — a slim profile that sits close to the face of the door
- Mounting height of 1-3/8" (34.9mm) — that is the band of the door the drip cap covers on the face
- Clear anodized aluminum or black anodized — the color is anodized in, so there is no paint to chip
- Security fasteners available as an option — call or email if the door needs tamper-resistant screws
 |  |  |  | |
|---|---|---|---|---|
| Specifications | ||||
Model "Model" is the general product. "SKU" is a specific variant of the general product based on options you choose (when relevant).
|
|
|
|
|
Price Price varies by length and finish
|
From $10.60 |
From $10.98 |
From $14.78 |
From $16.04 |
Brand |
Embassy Hardware
|
Embassy Hardware
|
Embassy Hardware
|
Embassy Hardware
|
Type The style of sweep, based on the sealing material (rubber, brush, silicone) combined with how it mounts
|
|
|
|
|
Seal Material What the seal itself is made of. Silicone stays flexible in both cold and heat temperature extremes; pile brush suits doors that sweep across the seal.
|
—
|
—
|
|
|
Mounting Surface-mounted gets screwed to the face of the door. Mortise-mounted sits in a groove cut into the door bottom.
|
|
|
|
|
Sweep Height |
—
|
—
|
|
|
Mounting Height |
|
|
|
|
Mounting Thickness |
|
|
|
|
Available Finishes Every finish this model is made in, not only the one shown
|
|
|
|
|
Options by Request Extras we can supply on request. Call or email before ordering.
|
|
|
|
|
Installation Details related to installation
|
|
|
|
|
| With Homebuilders Hardware | ||||
Ships Within (Business Days) Business days before it leaves the warehouse
|
|
|
|
|
About the brand
Embassy
Embassy is Homebuilders Hardware's premium residential and architectural brand. Designed for builders and homeowners who demand top-tier finish quality, durability, and a refined aesthetic. Backed by our Product Guarantee.
The EC712 is a door sweep with a rubber blade, surface mounted, a rain drip with a slot for a sweep. It closes the gap between the bottom of the door and the floor — the single biggest hole in most buildings for drafts, dust, noise and insects.
Why this seal
What to check before you order
The width of your door, and the gap under it. Sweeps run 24" to 144", cut to length. Measure both before ordering — too small a drop leaves the gap open, too large and the sweep drags.
Surface mounted — it screws to the face of the door with the fasteners supplied. No routing, no cutting, and it comes off again just as easily, which is why it is the usual choice for a retrofit.
Screws are included. Options such as fire labels, security fasteners and end caps can be added by request — contact us and we will arrange it.
- Comes with screws (#6 x 1/2″ SMS self-drilling screws)
