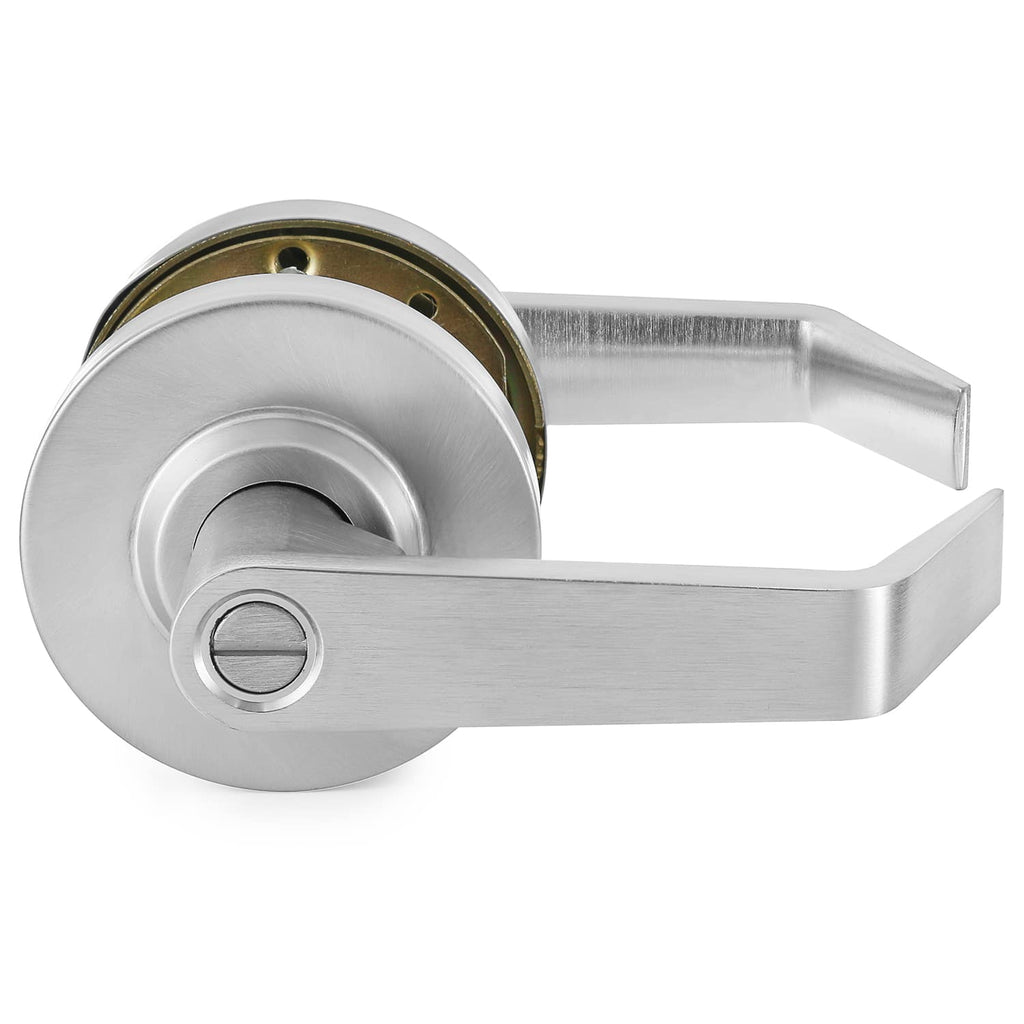

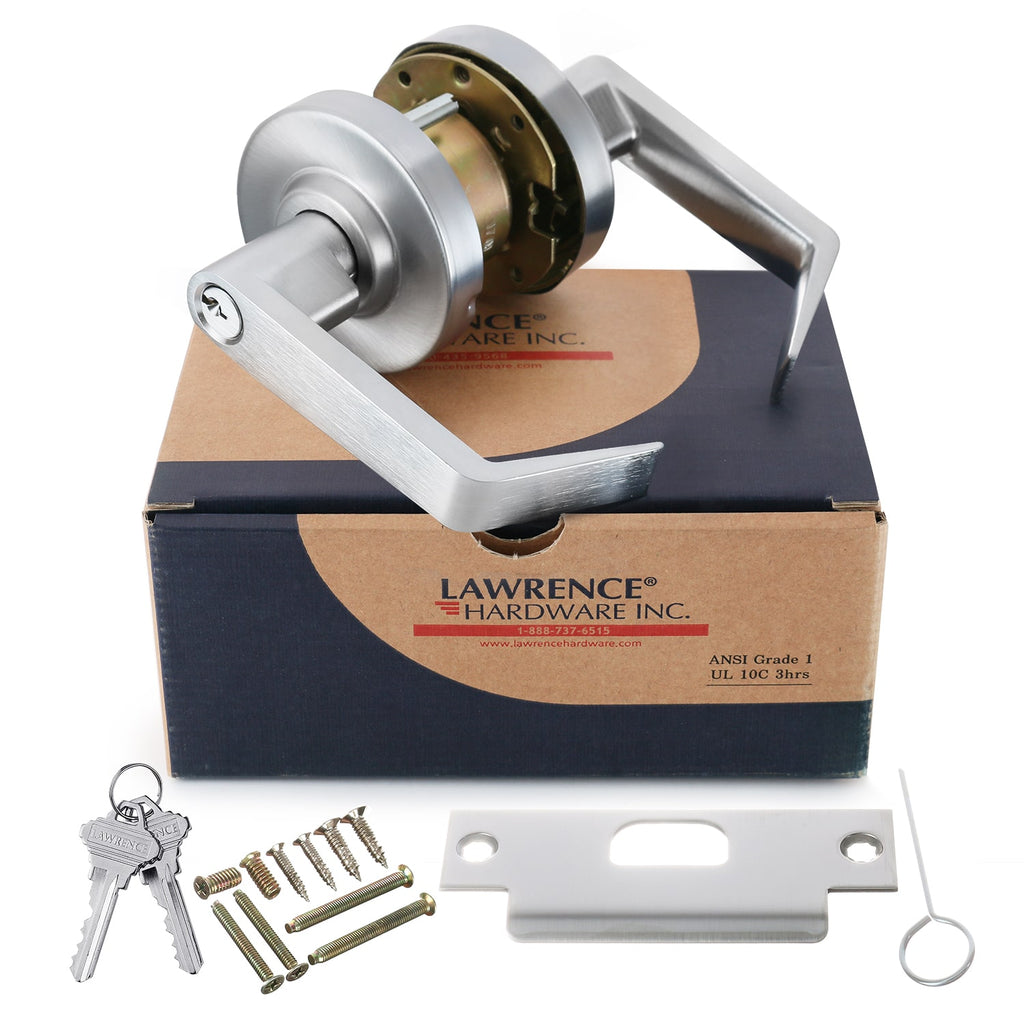

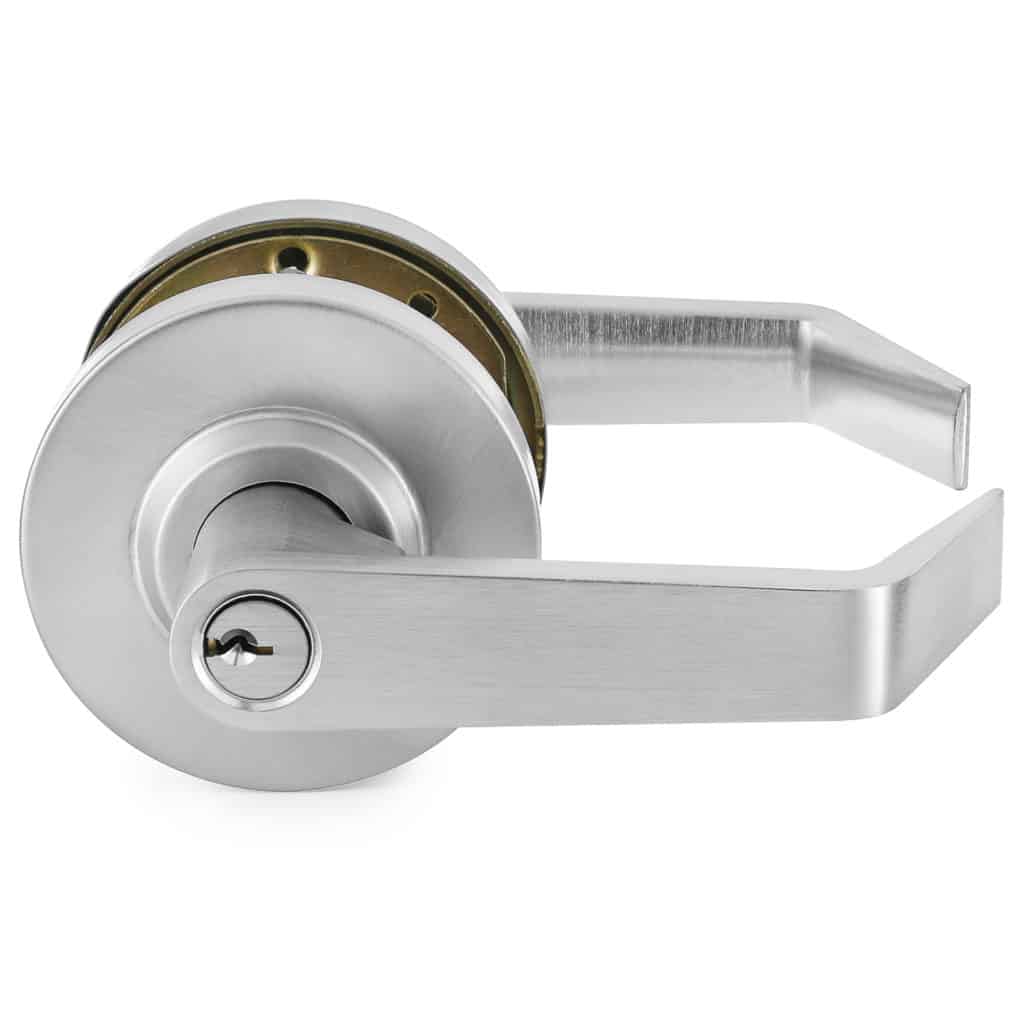

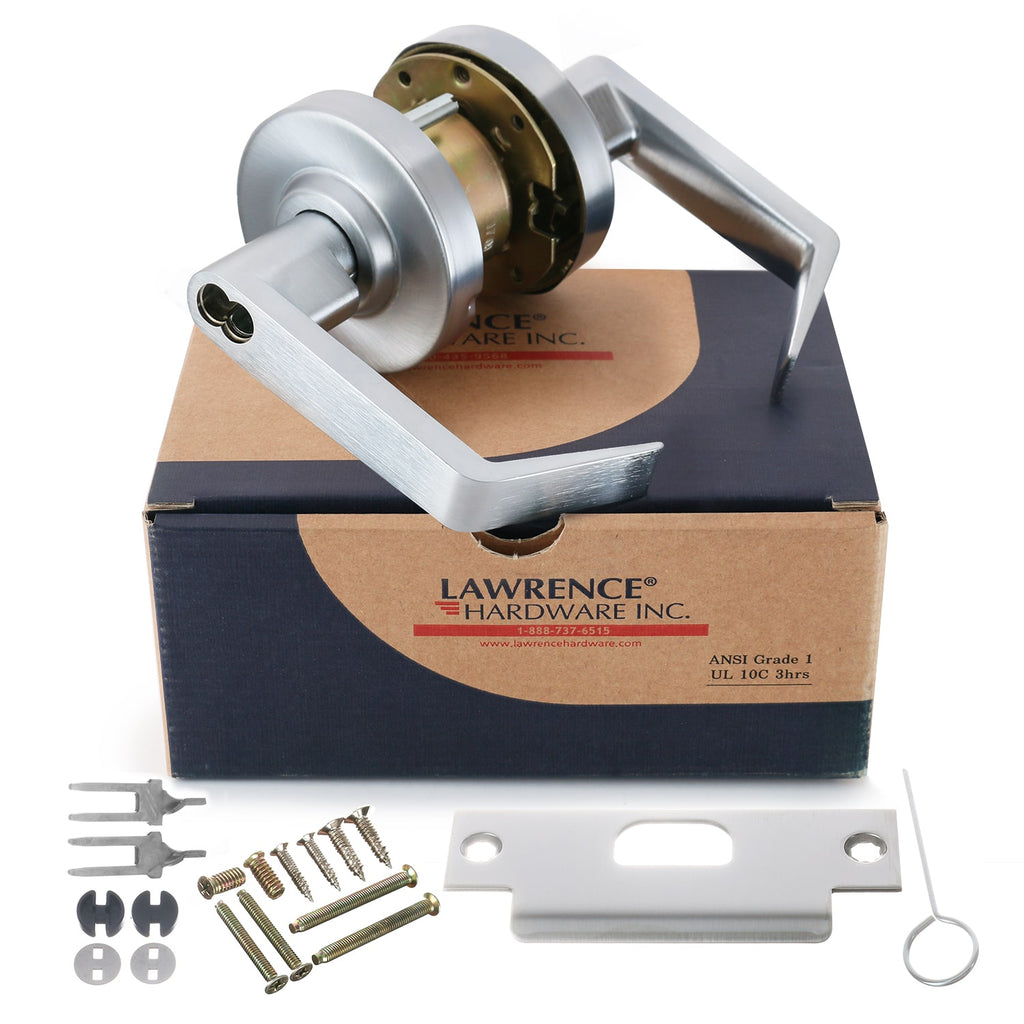

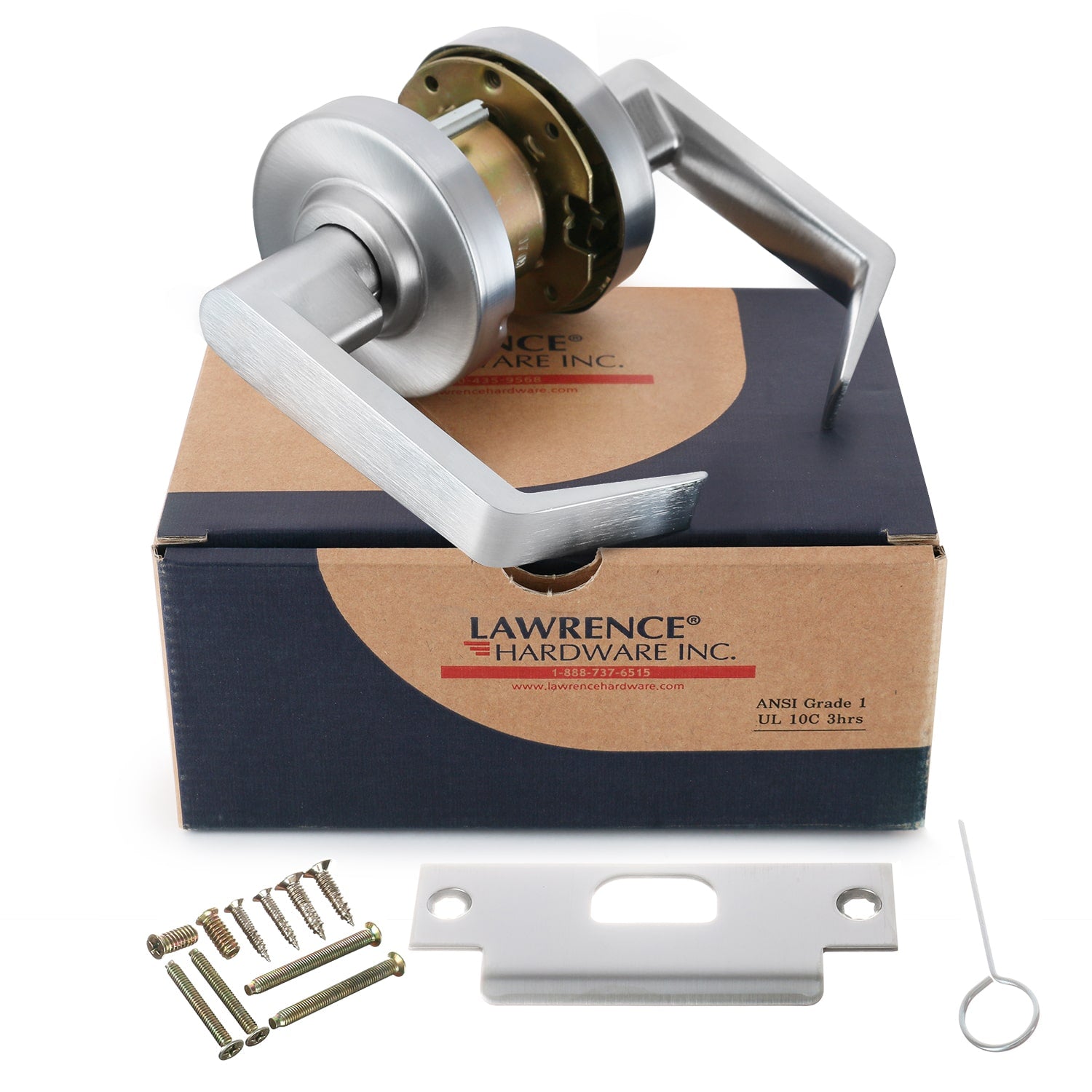

Door Lever Lockset, Extra-Heavy Duty Grade 1, Brushed Chrome, Lawrence Hardware
2-3/4" / Passage / Standard
In stock
$351.90
Sale price
$351.90
Regular price
Skip to product information
Door Lever Lockset, Extra-Heavy Duty Grade 1, Brushed Chrome, Lawrence Hardware
Commercial cylindrical door lever lockset, ANSI/BHMA Grade 1, in Brushed Chrome US26D, model LH5000L. Non-handed, so one lever fits a left or right hand door.
$351.90
Sale price
$351.90
Regular price
FinishBrushed Chrome
Backset 2-3/4"Function PassageKeying Standard
In stockQuick Ship · 30-day returns. See return policy
Discount per Quantity
1+
$351.90
5+
$316.71
save 10%
11+
$299.12
save 15%
26+
$281.52
save 20%
51+
$263.93
save 25%
Key specifications
- ANSI/BHMA Grade 1, extra heavy duty — the highest commercial rating a lever can hold, built for the busiest doors in the building
- Tested to more than 1,000,000 cycles — the opening and closing a busy commercial door sees over years
- Withstands 1,000 lbs per inch — it holds when someone leans, shoves or hangs on the lever
- Free-wheeling clutch — force the lever and it spins harmlessly instead of breaking the lock
- cUL/UL listed fire rated to 3 hours in every function — legal on rated openings in any building
- ADA Compliant to A117.10 — opens with a push of the forearm, no grasping or wrist twisting
- Brushed Chrome (US26D / 626) with a choice of locking functions — match it to the door's use
 |  |  |  | |
|---|---|---|---|---|
| Specifications | ||||
Model Model is the general product. Whereas "SKU" is a specific variant based on options you choose at the top.
|
|
|
|
|
Price Price varies by function and finish
|
From $329.99 |
From $137.98 |
From $160.23 |
From $79.80 |
Brand |
Lawrence Hardware
|
Lawrence Hardware
|
Embassy Hardware
|
Embassy Hardware
|
Function What the lockset's locking function does. Passage, Privacy, Entry, Storeroom, or Classroom. Each function is designed for a different scenario and thus a different locking ability.
|
|
|
|
|
Grade ANSI/BHMA grade. Grade 1 is the heaviest duty, for high-traffic commercial doors; Grade 2 suits light commercial and demanding residential.
|
|
|
|
|
Finish |
|
|
|
—
|
Backset The distance from the edge of the door to the center of the bore hole. 2-3/8" and 2-3/4" are the two common sizes.
|
|
|
|
|
Handing Whether the lever is made for a left-handed or right-handed door. Non-handed levers work on either one.
|
|
|
|
|
For Door Thickness The door thicknesses this fits. 1-3/4" is the commercial standard, 1-3/8" is common on interior residential doors.
|
|
|
|
|
Cycles Tested Open-and-close cycles the product survived in independent testing. A higher number means a longer life on a busy door.
|
|
—
|
—
|
—
|
Compliance Standards The ANSI/BHMA, UL, ADA and other standards this product is certified to
|
|
|
|
|
| With Homebuilders Hardware | ||||
Warranty |
|
|
|
|
Same Day Shipping Ships out today (if ordered during business hours)
|
|
|
|
|
About the brand
Lawrence Hardware
Lawrence Hardware has manufactured commercial door hardware since 1876. Its hardware is certified or built to ANSI/BHMA standards. Trusted by contractors, builders, and architects across North America for nearly 150 years.
The LH5000L is a commercial cylindrical lever lockset certified ANSI/BHMA Grade 1, in Brushed Chrome US26D. Built for the doors a business opens all day — offices, classrooms, stores and corridors.
Why this one
Grade 1 is the highest commercial rating a lever can hold. It is the specification for the busiest doors in a building, where a Grade 2 lever would wear out first.
It is non-handed, so the same lever works on a left or right hand door with nothing to reverse. That matters when you are fitting several doors at once and do not want to sort stock by swing.
What to check before you order
Your backset. Choose 2-3/8" or 2-3/4" to match the hole already bored in the door. Measure from the door edge to the center of the bore.
Your door thickness. It fits 1-3/8" to 1-3/4" doors.
The function. Entrance, passage, privacy, classroom and storeroom functions are offered. Match the function to how the door is actually used every day.
Backed by a 10 Year Warranty.
Free standard shipping on orders of $299 or more.
Quick Ship items can be returned within 30 days, unused and in their original packaging (20% restocking fee).
Made-to-Order items are custom produced for your order and are final sale.
See our Shipping Policy and Refund & Return Policy.
Have a question about this product? Visit our FAQ page or contact us — we typically respond within one business day.
