Heavy Duty Swing Clear Pin and Barrel Continuous Hinge, by Lawrence Hardware LH956
Heavy duty continuous hinge made from stainless steel, with a swing clear action, so the door leaf moves fully out of the opening when it swings back.
$695.89
Sale price
$695.89
Regular price
FinishUS32D
Title Default Title
In stockQuick Ship · 30-day returns. See return policy
Discount per Quantity
1+
$695.89
5+
$626.31
save 10%
11+
$591.51
save 15%
26+
$556.72
save 20%
51+
$521.92
save 25%
 |  |  |  | |
|---|---|---|---|---|
| Specifications | ||||
Model Model is the general product. Whereas "SKU" is a specific variant based on options you choose at the top.
|
|
|
|
|
Price Price varies by length and finish
|
$695.89 |
$670.78 |
$629.56 |
$880.29 |
Brand |
Lawrence Hardware
|
Lawrence Hardware
|
Lawrence Hardware
|
Lawrence Hardware
|
Mounting Type Full surface gets screwed to the face of the door and frame. "Edge Mount" and "Swing Clear" suit different frame types.
|
—
|
|
|
|
Material |
|
|
|
|
Weight Class Standard Weight or Heavy Weight. Meaning, how thick the leaves are. Choose heavy weight for wide, solid, or high-traffic doors.
|
|
|
|
|
Max Door Weight The heaviest door this is rated to carry
|
—
|
|
|
|
Fire Rating How long the product holds up in a fire door assembly, or whether a fire rated version can be ordered
|
—
|
—
|
|
|
Hinge Lengths Stocked lengths. Longer sizes available on request, call or email.
|
—
|
|
|
|
Grade ANSI/BHMA grade. Grade 1 is the heaviest duty, for high-traffic commercial doors; Grade 2 suits light commercial and demanding residential.
|
—
|
|
—
|
—
|
Compliance Standards The ANSI/BHMA, UL, ADA and other standards this product is certified to
|
—
|
|
|
|
| With Homebuilders Hardware | ||||
Same Day Shipping Ships out today (if ordered during business hours)
|
|
|
|
|
About the brand
Lawrence Hardware
Lawrence Hardware has manufactured commercial door hardware since 1876. Its hardware is certified or built to ANSI/BHMA standards. Trusted by contractors, builders, and architects across North America for nearly 150 years.

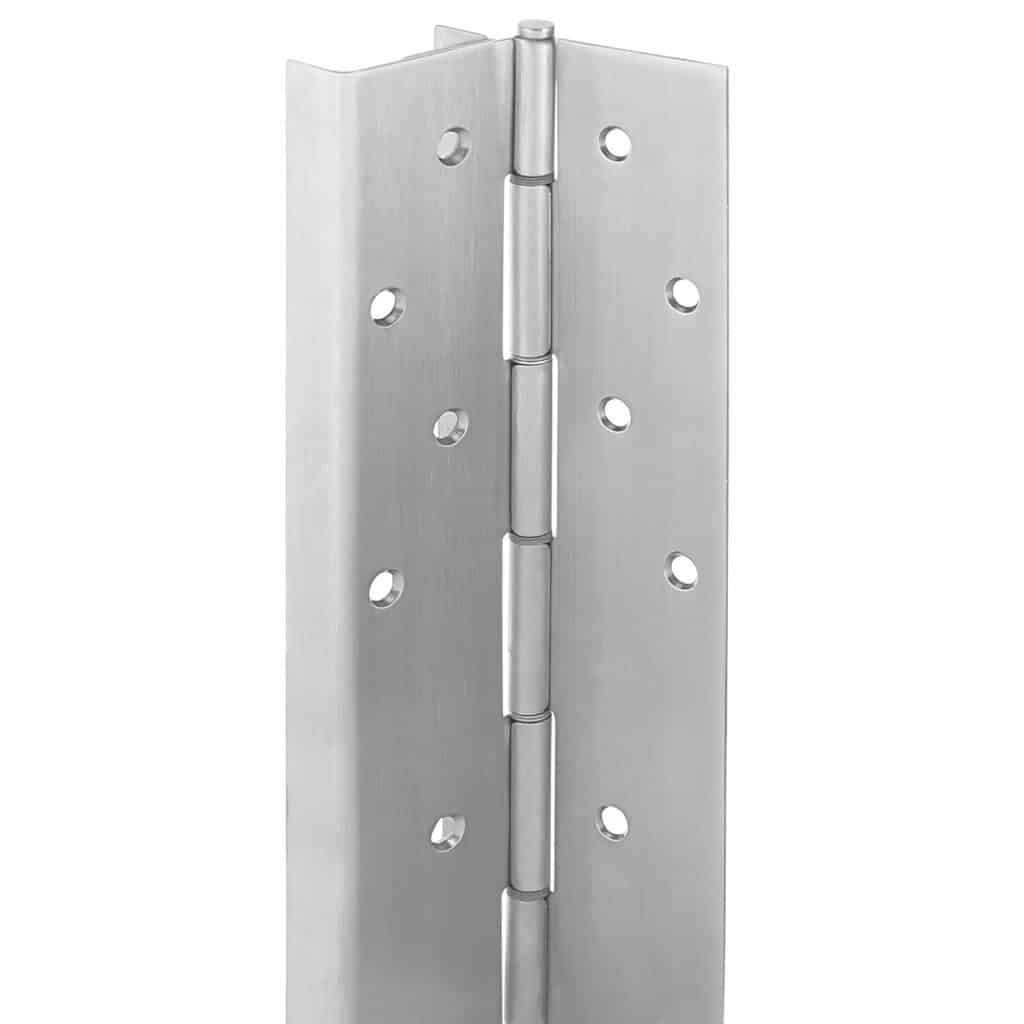

The LH956 is a heavy duty swing clear continuous hinge in stainless steel, running the full height of the door on a pin and barrel action rather than on two or three separate hinges.
What swing clear means, and why you would want it
A swing clear hinge carries the door fully out of the opening when it swings back, instead of leaving the leaf sitting in the doorway taking up width. On a standard hinge the open door eats into the clear passage; on a swing clear hinge it does not. That is why they turn up on hospital and care-home corridors, where a bed or a wheelchair has to get through an opening that is only just wide enough.
Why continuous rather than butt hinges
A continuous hinge spreads the door's weight along the whole edge instead of concentrating it at two or three points. Nothing works loose at a single screw, and the door stays in alignment rather than dropping over the years — which is what makes it worth its price on a door that never stops moving. Stainless steel throughout, in a US32D finish.
What to check before you order
Confirm the height of your door and that the frame can take a full-height hinge. Swing clear geometry also changes how the door sits relative to the frame, so it is worth having an installer look at the opening before ordering rather than after.
If you do not need the door to clear the opening, a standard continuous hinge will cost less and carry the same weight.
