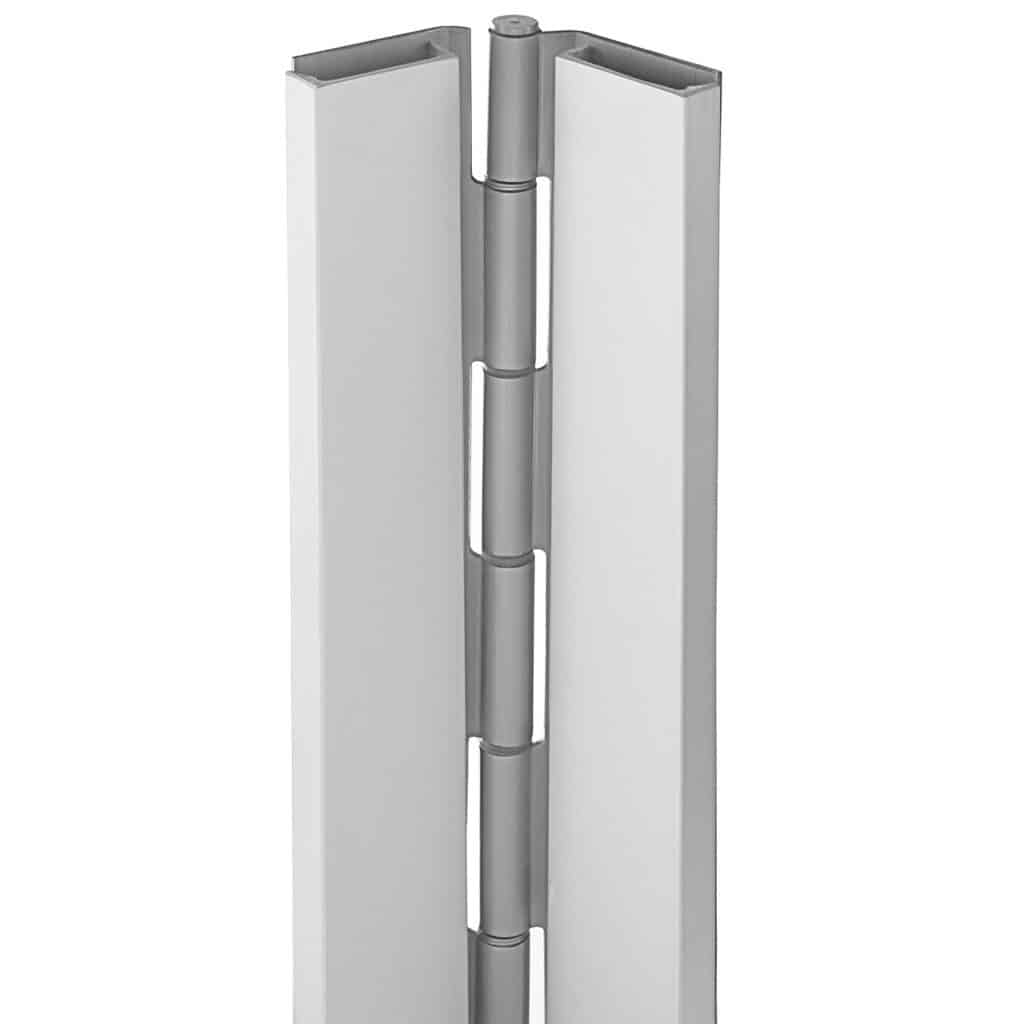

Continuous Hinge, Full Surface Pin and Barrel Hinge for 7 ft Doors with High Traffic, Heavy Duty, Stainless Steel (US32D Finish)
In stock
$880.29
Sale price
$880.29
Regular price
Skip to product information
Continuous Hinge, Full Surface Pin and Barrel Hinge for 7 ft Doors with High Traffic, Heavy Duty, Stainless Steel (US32D Finish)
Heavy duty continuous hinge LH957, pin and barrel, full surface mounted, carrying doors up to 600 pounds. Runs the full height of the door instead of two or three separate hinges.
$880.29
Sale price
$880.29
Regular price
FinishSatin Stainless Steel
Title Default Title
In stockQuick Ship · 30-day returns. See return policy
Discount per Quantity
1+
$880.29
5+
$792.27
save 10%
11+
$748.25
save 15%
26+
$704.24
save 20%
51+
$660.22
save 25%
Key specifications
- Heavy duty, continuous hinge for high-traffic doors. Visible mounting when closed
- Continuous hinge line with no separate knuckles — the door holds its alignment for the life of the building
- Self-lubricating medical-grade bearings — the door swings smoothly and closes quietly with no oiling ever
- Runs the full height of the door — the weight spreads along the entire edge instead of three hinge points
- Rated for doors up to 300 lbs, or 600 lbs with reinforcing — enough for a heavy solid-core entrance
- Fire rated ULC up to 3 hours — the same hinge can be specified on a rated opening in the same building
- Stainless steel with a US32D satin finish — no plated coating to wear through where hands and carts hit
- Length: 6’ 8” for 7 ft doors. (Contact us for: 7’2”, 8’ and 10')
 |  |  |  | |
|---|---|---|---|---|
| Specifications | ||||
Model Model is the general product. Whereas "SKU" is a specific variant based on options you choose at the top.
|
|
|
|
|
Price Price varies by length and finish
|
$880.29 |
From $295.98 |
$670.78 |
$629.56 |
Brand |
Lawrence Hardware
|
Lawrence Hardware
|
Lawrence Hardware
|
Lawrence Hardware
|
Mounting Type Full surface gets screwed to the face of the door and frame. "Edge Mount" and "Swing Clear" suit different frame types.
|
|
|
|
|
Material |
|
|
|
|
Weight Class Standard Weight or Heavy Weight. Meaning, how thick the leaves are. Choose heavy weight for wide, solid, or high-traffic doors.
|
|
|
|
|
Max Door Weight The heaviest door this is rated to carry
|
|
|
|
|
Fire Rating How long the product holds up in a fire door assembly, or whether a fire rated version can be ordered
|
|
|
—
|
|
Hinge Lengths Stocked lengths. Longer sizes available on request, call or email.
|
|
|
|
|
Grade ANSI/BHMA grade. Grade 1 is the heaviest duty, for high-traffic commercial doors; Grade 2 suits light commercial and demanding residential.
|
—
|
|
|
—
|
Compliance Standards The ANSI/BHMA, UL, ADA and other standards this product is certified to
|
|
—
|
|
|
| With Homebuilders Hardware | ||||
Warranty |
—
|
|
—
|
—
|
Same Day Shipping Ships out today (if ordered during business hours)
|
|
|
|
|
About the brand
Lawrence Hardware
Lawrence Hardware has manufactured commercial door hardware since 1876. Its hardware is certified or built to ANSI/BHMA standards. Trusted by contractors, builders, and architects across North America for nearly 150 years.
The LH957 is a heavy duty continuous hinge that runs the full height of the door, in stainless steel on a pin and barrel action. It carries doors up to 600 pounds and 48” wide.
Why continuous rather than butt hinges
Three butt hinges concentrate a door's whole weight at three points, and those points are where a heavy door eventually works loose and starts to sag. A continuous hinge spreads that load along the entire edge. Nothing loosens at a single screw, and the door stays in alignment for the life of the building rather than needing adjustment every few years.
The pin and barrel action carries the load on a continuous pin, and self-lubricating bearings keep the swing smooth and quiet.
What to check before you order
Your door height. A continuous hinge is cut to the door, so measure it.
Your door weight and width. Up to 600 pounds and 48”. Past that you need a different specification.
The frame. It flush mounts, so the frame has to take a full-height hinge. Worth having an installer look at the opening before ordering rather than after.
