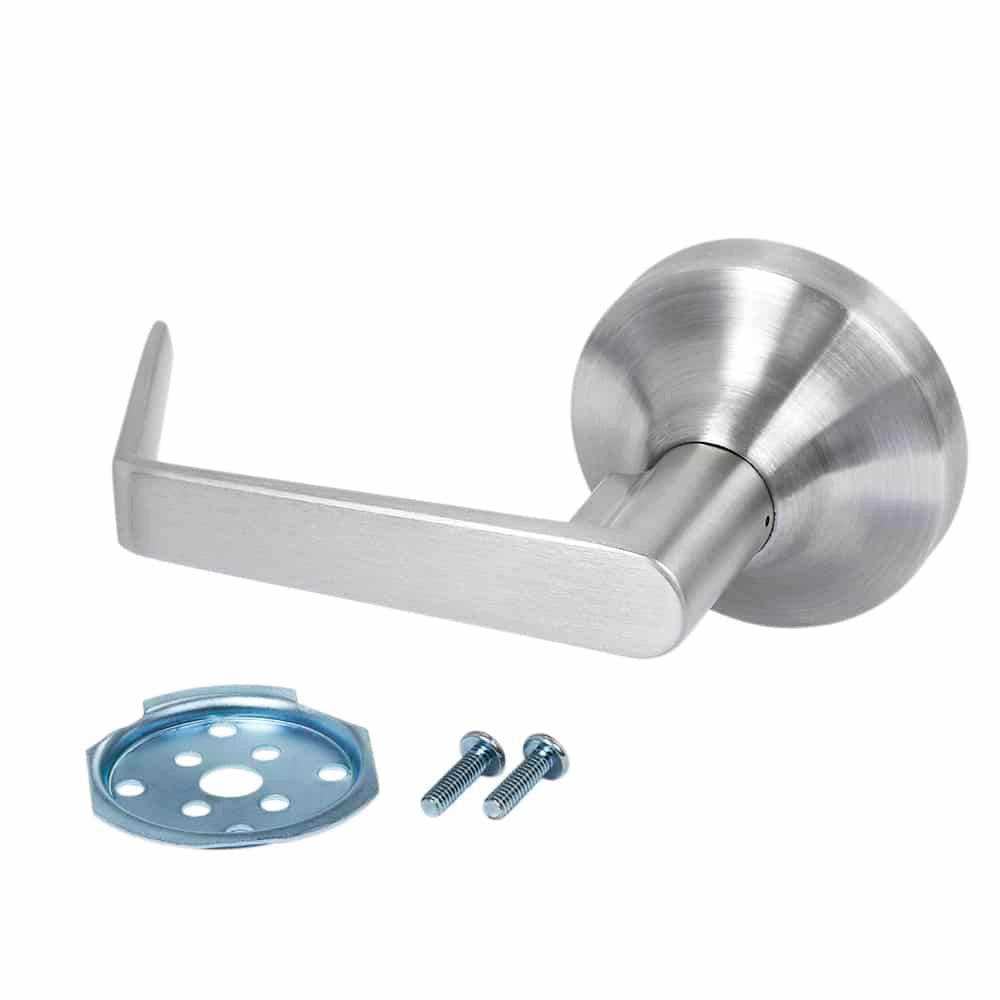

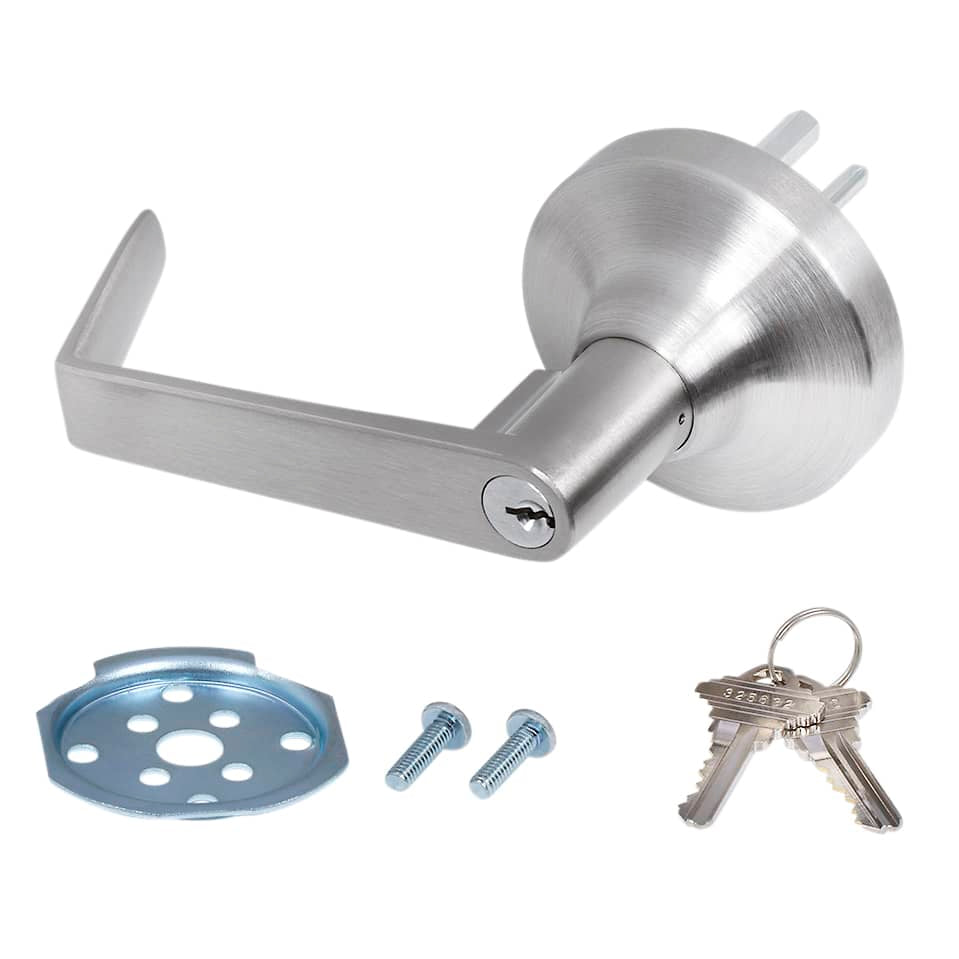

External Lever Trim on Rosette for 5500 Series Medium Duty Exit Devices, SF801B C32D
Lever trim on a rosette for 5500 Series exit devices, including the LH5510. Adds keyed lever entry from outside a door that pushes open from within.
$134.80
Sale price
$134.80
Regular price
FinishSatin Stainless Steel
Function Classroom
In stockQuick Ship · 30-day returns. See return policy
Discount per Quantity
1+
$134.80
5+
$121.32
save 10%
11+
$114.58
save 15%
26+
$107.84
save 20%
51+
$101.10
save 25%
Mix any options you like — the total quantity sets the discount.
0 items
Key specifications
- Made for Grade 2 5510 exit devices — this trim will not fit exit devices made by other brands
- Free-wheeling clutch lever — when locked it spins in your hand, so a vandal cannot break it off to get in
- Two through bolts anchor the trim to the internal device chassis — it will not pull off under attack
- Non-handed for right-hand or left-hand doors — one part number covers both, and installation is simple
- Satin stainless steel US32D (630) finish — the code to quote when matching your other door hardware
- Classroom, Passage or Storeroom function — key locks and unlocks, always unlocked, or key retracts the latch
 |  |  |  | |
|---|---|---|---|---|
| Specifications | ||||
Model Model is the general product. Whereas "SKU" is a specific variant based on options you choose at the top.
|
|
|
|
|
Price Price varies by function and finish
|
From $121.96 |
From $175.31 |
From $249.99 |
From $362.60 |
Brand |
Lawrence Hardware
|
Lawrence Hardware
|
Lawrence Hardware
|
Lawrence Hardware
|
Grade ANSI/BHMA grade. Grade 1 is the heaviest duty, for high-traffic commercial doors; Grade 2 suits light commercial and demanding residential.
|
—
|
|
|
|
Duty Level The traffic level the product is built for. Light, medium, heavy, or extra heavy duty.
|
—
|
—
|
|
|
Cycles Tested Open-and-close cycles the product survived in independent testing. A higher number means a longer life on a busy door.
|
—
|
—
|
|
—
|
Dogging Whether the latch can be held retracted so the door pushes open freely
|
—
|
—
|
|
—
|
Fits Door Width The door widths this device is made for
|
—
|
—
|
|
—
|
For Door Thickness The door thicknesses this fits. 1-3/4" is the commercial standard, 1-3/8" is common on interior residential doors.
|
—
|
—
|
|
|
Material |
—
|
—
|
|
|
Width |
—
|
—
|
|
|
Compliance Standards The ANSI/BHMA, UL, ADA and other standards this product is certified to
|
—
|
—
|
|
—
|
| With Homebuilders Hardware | ||||
Same Day Shipping Ships out today (if ordered during business hours)
|
|
|
|
|
About the brand
Lawrence Hardware
Lawrence Hardware has manufactured commercial door hardware since 1876. Its hardware is certified or built to ANSI/BHMA standards. Trusted by contractors, builders, and architects across North America for nearly 150 years.
The outside trim for our 5500 Series exit devices, which includes the LH5510. The exit device lets people push their way out from inside; this is the part that lets an authorized person get back in, with a key and a lever.
Why the rosette
The lever sits on a small round rosette rather than a full-length escutcheon plate. It is the tidier of the two options and shows less hardware on the door. Choose the long escutcheon instead if you want the larger plate, or if it has to cover marks left by previous hardware.
The lever has an anti-vandalism free-wheeling clutch: forced when locked, it spins rather than transmitting the force into the mechanism, so the lock survives the attempt.
What to check before you order
Your exit device. This trim fits 5500 Series devices only. Trim does not swap between series, so check which one you have.
Non-handed, so it fits a right or left hand door. Finished in Satin Stainless Steel (US32D).
- 1 External Lever Trim on Rosette (for 8800 Series Heavy Duty Exit Devices)
- 2 Through Bolts
