Rubber Door Sweep - Mortise Mounted - For Wood Door Bottoms - Sweep Height of 1/4" (6.4mm)

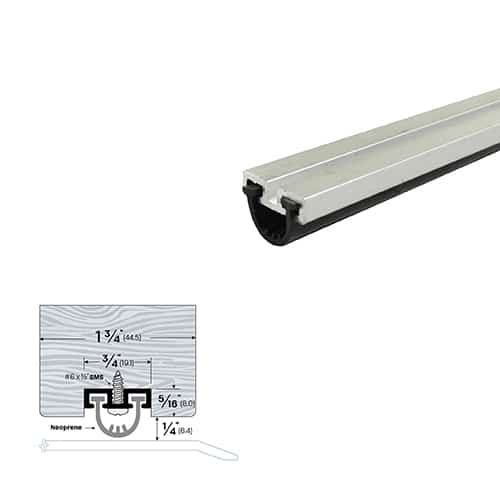

Door sweep EC735, with a solid rubber blade, mortise mounted, for wood doors, 1/4" deep. Closes the gap under the door against drafts, dust, noise and pests. Cut to length from 24" to 144".
$18.56
Sale price
$18.56
Regular price
Length 24"Finish Mill Aluminum
Made to order — ships in 7 business daysFinal sale. See return policy
Discount per Quantity
1+
$18.56
5+
$16.71
save 10%
11+
$15.78
save 15%
26+
$14.85
save 20%
51+
$13.92
save 25%
Key specifications
- Weatherseal: neoprene rubber with fins that can be inverted — the sealing element itself, so match it to the floor at that opening
- Neoprene rubber wipes the floor as the door closes — a solid seal that blocks more air and dust than bristles
- Seals the gap between the door and the threshold — keeping out dust, drafts, pests, and some sound
- Available in Mill Aluminum, Dark Bronze Anodized — so the sweep is not the odd piece of hardware on the opening

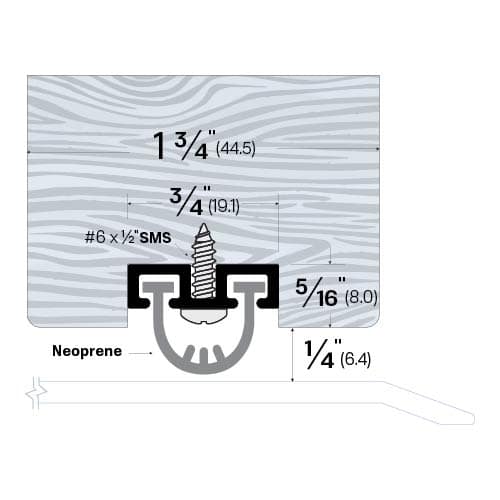

- Mounting thickness: 3/4" (19.1mm) — the depth figure to check against the door before you order
- Mounting height: 5/16" (8.0mm) — the vertical figure to check before you order, not after it arrives
- Sweep height: 1/4" (6.4mm) — the figure to compare against the gap under the door you are sealing
 |  |  |  | |
|---|---|---|---|---|
| Specifications | ||||
Model "Model" is the general product. "SKU" is a specific variant of the general product based on options you choose (when relevant).
|
|
|
|
|
Price Price varies by length and finish
|
From $18.56 |
From $42.22 |
From $14.31 |
From $28.93 |
Brand |
Embassy Hardware
|
Embassy Hardware
|
Embassy Hardware
|
Embassy Hardware
|
Type The style of sweep, based on the sealing material (rubber, brush, silicone) combined with how it mounts
|
|
|
|
|
Seal Material What the seal itself is made of. Silicone stays flexible in both cold and heat temperature extremes; pile brush suits doors that sweep across the seal.
|
|
|
|
|
Mounting Surface-mounted gets screwed to the face of the door. Mortise-mounted sits in a groove cut into the door bottom.
|
|
|
|
|
Sweep Height |
|
|
|
|
Mounting Height |
|
|
|
|
Mounting Thickness |
|
|
|
|
Available Finishes Every finish this model is made in, not only the one shown
|
|
|
|
|
Options by Request Extras we can supply on request. Call or email before ordering.
|
—
|
|
—
|
|
Installation Details related to installation
|
|
|
|
|
| With Homebuilders Hardware | ||||
Ships Within (Business Days) Business days before it leaves the warehouse
|
|
|
|
|
About the brand
Embassy
Embassy is Homebuilders Hardware's premium residential and architectural brand. Designed for builders and homeowners who demand top-tier finish quality, durability, and a refined aesthetic. Backed by our Product Guarantee.
The EC735 is a door sweep with a solid rubber blade, mortise mounted, for wood doors. It closes the gap between the bottom of the door and the floor — the single biggest hole in most buildings for drafts, dust, noise and insects.
Why this seal
A rubber blade seals tighter than a brush on a smooth, even floor, and it blocks more air. It is the default choice for an exterior door where drafts and water are the problem.
What to check before you order
The width of your door, and the gap under it. Sweeps run 24" to 144", cut to length. The seal drops 1/4" below the carrier, so that is the gap it closes. Measure both before ordering — too small a drop leaves the gap open, too large and the sweep drags.
Mortise mounted — it fits into a slot routed in the bottom of the door rather than sitting on the face. It takes more work to install and it looks like part of the door once it is in.
Screws are included. Options such as fire labels, security fasteners and end caps can be added by request — contact us and we will arrange it.
- Comes with screws (#6 x 1/2″ SMS self-drilling screws)
