Heavy Duty Cast Aluminum Commercial Door Closer LH816 — Lawrence Hardware EMBASSY Series
Painted Brass (PB)
In stock
$258.99
Sale price
$258.99
Regular price
Skip to product information
![]()

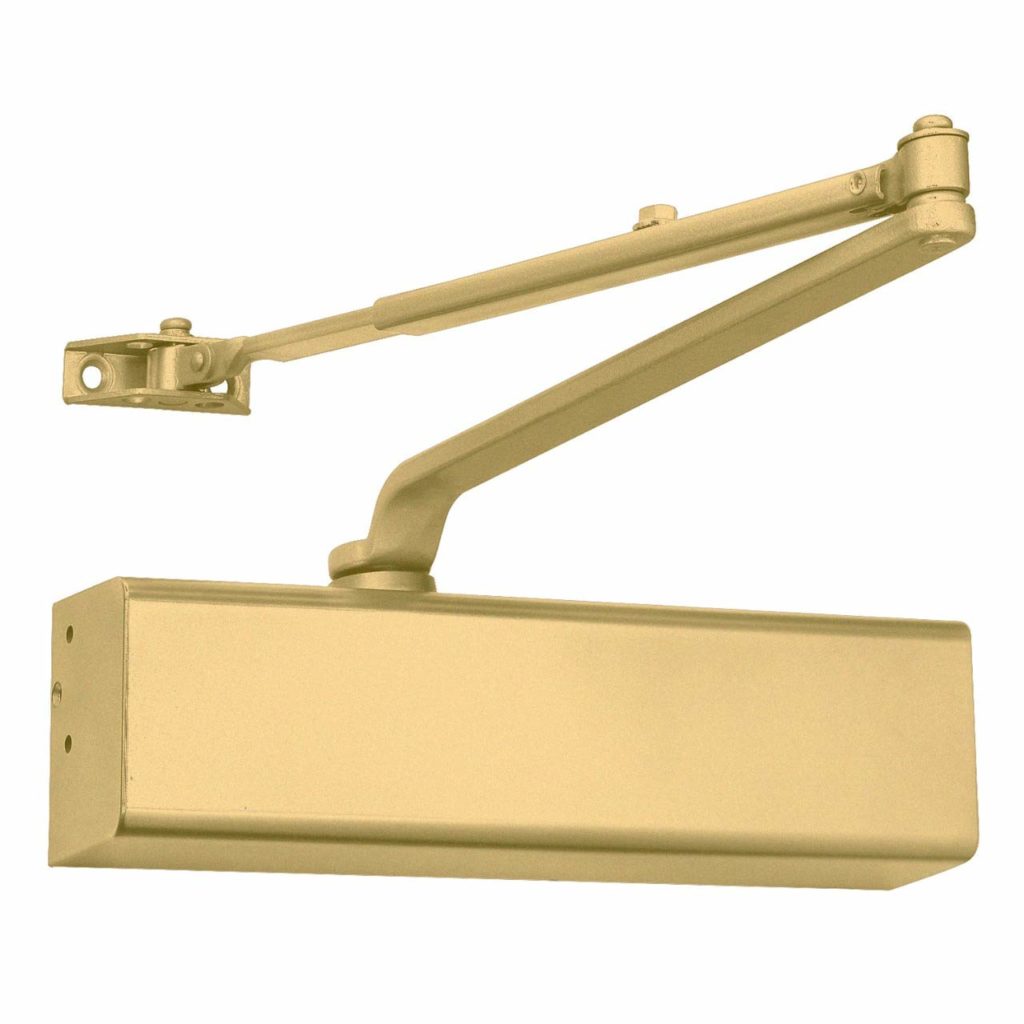

Heavy Duty Cast Aluminum Commercial Door Closer LH816 — Lawrence Hardware EMBASSY Series
Heavy duty commercial door closer made from cast aluminum, for high-traffic entrances, indoors or out. Grade 1, carries up to 200 lbs at around 4,000 openings a day.
$258.99
Sale price
$258.99
Regular price
Finish Painted Brass (PB)
In stockQuick Ship · 30-day returns. See return policy
Discount per Quantity
1+
$258.99
5+
$233.10
save 10%
11+
$220.15
save 15%
26+
$207.20
save 20%
51+
$194.25
save 25%
- — Sold out
Mix any options you like — the total quantity sets the discount.
0 items
Key specifications
- Heavy Duty closer — specified for high traffic on an entrance door used indoors or outdoors
- ANSI-certified Grade 1 — the commercial rating a specifier expects on a door the public uses
- Fits doors up to 60" interior / 48" exterior — measure the door before ordering
- Power Size #1-6 Adjustable — dial the closing force to the door and the traffic it sees
- Fully Adjustable — tune the whole cycle, including power level, sweep speed, latch speed, backcheck and delayed action
- ADA capable and UL listed as Fire Rated — set the closing force to the ADA level after installing
- Three mounting options — regular, top jamb, or parallel arm to fit virtually any frame and door stop
- 30-Year Warranty — three decades of coverage on one closer
 |  |  |  | |
|---|---|---|---|---|
| Specifications | ||||
Model Model is the general product. Whereas "SKU" is a specific variant based on options you choose at the top.
|
|
|
|
|
Price Price varies by finish
|
From $179.98 |
From $219.98 |
From $149.98 |
$122.99 |
Brand |
Lawrence Hardware
|
Lawrence Hardware
|
Lawrence Hardware
|
Lawrence Hardware
|
Duty Level The traffic level the product is built for. Light, medium, heavy, or extra heavy duty.
|
|
|
|
|
Max Door Weight The heaviest door this is rated to carry
|
|
|
|
|
Openings per Day The approximate number of door openings per day the closer is rated for
|
|
|
|
|
Power Size The closing force, sized to the door. #1-2 suit narrow interior doors, #3-4 standard doors, #5-6 wide or exterior doors. Adjustable models let you customize closing force (e.g. increase for windy areas, reduce for ADA compliance, etc.)
|
|
|
|
|
Adjustments Which settings can be adjusted after installation, including closing force and the speeds at different points in the opening and closing movements
|
|
|
|
|
Max Door Width |
|
|
|
|
Body Length |
|
|
|
|
Body Height |
|
|
|
|
Body Projection How far the closer stands out from the face of the door
|
|
|
|
|
Screw Center-to-Center Widths Horizontal distance between the mounting screw holes, measured hole center to hole center
|
|
|
|
|
Screw Center-to-Center Heights Vertical distance between the mounting screw holes, measured hole center to hole center
|
|
|
|
|
Available Finishes Every finish this model is made in, not only the one shown
|
|
|
|
|
Compliance Standards The ANSI/BHMA, UL, ADA and other standards this product is certified to
|
|
|
|
|
| With Homebuilders Hardware | ||||
Warranty |
|
|
|
|
Same Day Shipping Ships out today (if ordered during business hours)
|
|
|
|
|
About the brand
Lawrence Hardware
Lawrence Hardware has manufactured commercial door hardware since 1876. Its hardware is certified or built to ANSI/BHMA standards. Trusted by contractors, builders, and architects across North America for nearly 150 years.
The LH816 is the heavy duty cast aluminum closer in the Embassy Series from Lawrence Hardware, specified for high-traffic commercial doors indoors and out — office entrances, school corridors, medical facilities, hotels and multi-family buildings. It is certified Grade 1 to ANSI/BHMA A156.4 past 2,000,000 cycles and rated for roughly 4,000 openings a day.
Why this one
The LH816 sits in the middle of the heavy duty range on purpose. It carries doors up to 200 lbs and up to 60 inches wide, which covers most commercial entrances, and its cast aluminum body will not corrode in salt air — the reason to choose it over the cast iron LH8016 on any coastal or poolside opening. Where the LH8016 buys you capacity, the LH816 buys you an aluminum body at a lower price.
What to check before you order
The door. Up to 200 lbs, up to 60 inches wide inside or 48 inches outside. Heavier or wider than that and you want the LH8016.
The frame. Regular arm, top jamb and parallel arm hardware all ship in the box. Check your door stop clearance before choosing which one to use.
The closing force. Spring power #1 through #6 is adjustable at installation, not preset at the factory. It has to be dialed to the door, and to the ADA limit if the opening must be accessible.
Good to know
This closer does not hold the door open by itself — that needs the separate hold-open arm. Sweep speed, latch speed, backcheck and delayed action all adjust after mounting.
The LH816 shares the Norton 8501 footprint. Step up to the LH8016 for a heavier door, or down to the LH5016 for moderate traffic.
- 1× LH816 closer body
- 1× Regular arm assembly
- Mounting screws (3 mount types)
- Installation template
- Adjusting wrench
Same Day Shipping
Free standard shipping on orders of $299 or more.
Quick Ship items can be returned within 30 days, unused and in their original packaging (20% restocking fee).
Made-to-Order items are custom produced for your order and are final sale.
See our Shipping Policy and Refund & Return Policy.
How does the installation process work for the LH816?
Mount the closer body to the door using the included screws and template. The LH816 supports regular arm, top-jamb, and parallel-arm mounting — installation hardware for all three mounts is included. Connect the arm assembly to the door frame bracket, then adjust closing speed, latch speed, and (where applicable) backcheck using the included wrench. Most installations take 30-45 minutes.
What size door does the LH816 fit?
The LH816 is rated for doors up to 48 in. wide and 200 lbs. This makes it suitable for heavy duty applications. For larger doors, see our heavier-duty models.
Is the LH816 ANSI Grade 1?
Yes — the LH816 meets ANSI/BHMA A156.4 Grade 1. It has been third-party tested per BHMA standards and certified for commercial use.
What products does the LH816 compare to?
The LH816 is engineered as a direct functional and footprint replacement for: Norton 8501 · LCN 1461 · Sargent 1431. In many cases the existing mounting holes will line up with no re-drilling required.
Is it ADA compliant?
Yes. The LH816 can be adjusted to meet ADA opening-force requirements (5 lbs maximum for interior doors). Adjustment screws are accessible on the closer body — no disassembly required.
What finishes are available?
The LH816 ships in multiple finishes — see the swatches above. The most common are Aluminum (AL), Dark Bronze (DU/690), Painted Brass (PB), Matte Black (US19), and Polished Chrome (US26). All are powder-coated for long-term corrosion resistance.
