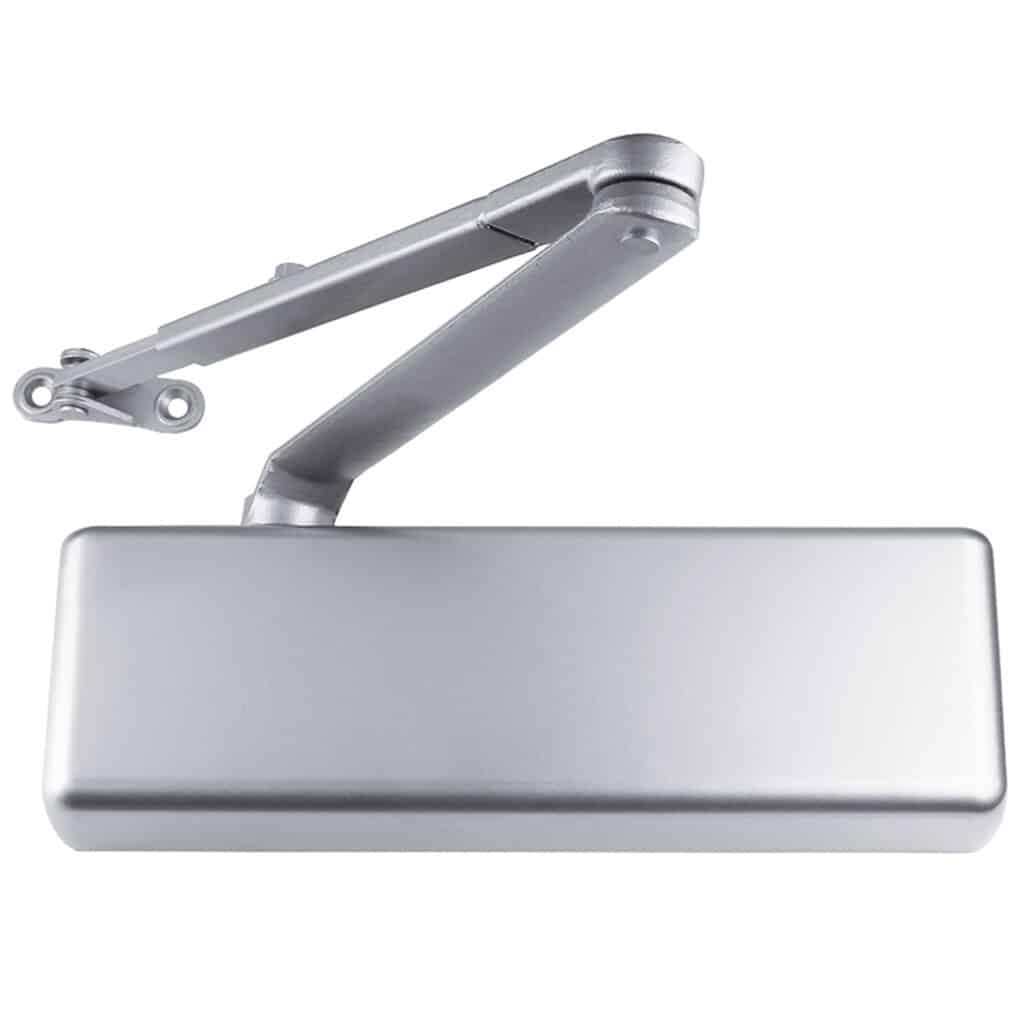

Extra Heavy Duty Commercial Door Closer LH8016 — Lawrence Hardware EMBASSY Series
Aluminum (AL)
In stock
$219.98
Sale price
$219.98
Regular price
Skip to product information
![]()
Extra Heavy Duty Commercial Door Closer LH8016 — Lawrence Hardware EMBASSY Series
Extra heavy duty commercial door closer with a cast iron body, for the doors a building cannot afford to have fail. Grade 1, carries up to 250 lbs at around 5,000 openings a day.
$219.98
Sale price
$219.98
Regular price
Finish Aluminum (AL)
In stockQuick Ship · 30-day returns. See return policy
Discount per Quantity
1+
$219.98
5+
$197.99
save 10%
11+
$186.99
save 15%
26+
$175.99
save 20%
51+
$164.99
save 25%
- — Sold out
Mix any options you like — the total quantity sets the discount.
0 items
Key specifications
- Cast Iron Body — the reason this one is rated extra heavy duty while most closers are cast aluminum
- ANSI/BHMA A156.4 Grade 1 — the highest quality rating available for door hardware
- Tested past 2,000,000 cycles — third-party testing found it performing like new
- Carries doors up to 250 lbs, 60" interior or 48" exterior — measure the door before ordering
- Power Size #1-6 Adjustable — dial the closing force to the door and the traffic it sees
- Fully Adjustable — tune the whole cycle, including power level, sweep speed, latch speed, backcheck and delayed action
- ADA capable and UL listed as Fire Rated — set the closing force to the ADA level after installing
- Anti-Corrosion Polymer Cover — protects the closer body on an exterior opening
- Not for marine environments — cast iron corrodes in salt air, so choose the aluminum LH816 for a coastal opening
- Backed by a 30-Year Limited Warranty — three decades of cover on a part that works every time the door opens
 |  |  |  | |
|---|---|---|---|---|
| Specifications | ||||
Model Model is the general product. Whereas "SKU" is a specific variant based on options you choose at the top.
|
|
|
|
|
Price Price varies by finish
|
From $219.98 |
From $179.98 |
From $149.98 |
$122.99 |
Brand |
Lawrence Hardware
|
Lawrence Hardware
|
Lawrence Hardware
|
Lawrence Hardware
|
Duty Level The traffic level the product is built for. Light, medium, heavy, or extra heavy duty.
|
|
|
|
|
Max Door Weight The heaviest door this is rated to carry
|
|
|
|
|
Openings per Day The approximate number of door openings per day the closer is rated for
|
|
|
|
|
Power Size The closing force, sized to the door. #1-2 suit narrow interior doors, #3-4 standard doors, #5-6 wide or exterior doors. Adjustable models let you customize closing force (e.g. increase for windy areas, reduce for ADA compliance, etc.)
|
|
|
|
|
Adjustments Which settings can be adjusted after installation, including closing force and the speeds at different points in the opening and closing movements
|
|
|
|
|
Max Door Width |
|
|
|
|
Body Length |
|
|
|
|
Body Height |
|
|
|
|
Body Projection How far the closer stands out from the face of the door
|
|
|
|
|
Screw Center-to-Center Widths Horizontal distance between the mounting screw holes, measured hole center to hole center
|
|
|
|
|
Screw Center-to-Center Heights Vertical distance between the mounting screw holes, measured hole center to hole center
|
|
|
|
|
Available Finishes Every finish this model is made in, not only the one shown
|
|
|
|
|
Compliance Standards The ANSI/BHMA, UL, ADA and other standards this product is certified to
|
|
|
|
|
| With Homebuilders Hardware | ||||
Warranty |
|
|
|
|
Same Day Shipping Ships out today (if ordered during business hours)
|
|
|
|
|
About the brand
Lawrence Hardware
Lawrence Hardware has manufactured commercial door hardware since 1876. Its hardware is certified or built to ANSI/BHMA standards. Trusted by contractors, builders, and architects across North America for nearly 150 years.
The LH8016 is the extra heavy duty closer at the top of the Embassy Series from Lawrence Hardware, built for openings that cannot afford a failure: school corridors, hospital entrances, stadium gates and industrial doors. It is certified Grade 1 to ANSI/BHMA A156.4 past 2,000,000 cycles and rated for roughly 5,000 openings a day.
Why the cast iron body matters
Almost every surface-mounted closer in this class has a cast aluminum body. The LH8016 uses cast iron, and that is the reason to choose it. The heavier casting is what earns the extra heavy duty rating and the higher capacity — 250 lbs of door, against 200 lbs for the cast aluminum LH816.
What to check before you order
The door. Up to 250 lbs, and up to 60 inches wide inside or 48 inches outside. Measure the door before ordering — an exterior door wider than 48 inches needs a different solution.
The frame. Regular arm, top jamb and parallel arm hardware all ship in the box, so it fits nearly any frame. Check the clearance at your door stop first.
The closing force. Spring power #1 through #6 is set during installation, not at the factory. Whoever fits it has to dial the force to the door — and to the ADA limit if the opening has to be accessible.
Good to know
Cast iron corrodes in salt air, so for a coastal opening choose the aluminum LH816 instead. This closer does not hold the door open on its own; that takes the separate LH8016 hold-open arm. Sweep speed, latch speed, backcheck and delayed action all adjust after mounting.
The LH8016 shares the footprint of the LCN 4040XP and 4041, so it often drops onto an existing installation. For a lighter door or gentler traffic, the LH816 or LH5016 cost less.
- 1× LH8016 closer body
- 1× Regular arm assembly
- Mounting screws (regular, top jamb, parallel)
- Drop bracket plate
- Installation template + instructions
- Adjusting wrench
Same Day Shipping
Free standard shipping on orders of $299 or more.
Quick Ship items can be returned within 30 days, unused and in their original packaging (20% restocking fee).
Made-to-Order items are custom produced for your order and are final sale.
See our Shipping Policy and Refund & Return Policy.
How does the installation process work for the LH8016?
Mount the closer body to the door using the included screws and template. The LH8016 supports regular arm, top-jamb, and parallel-arm mounting — installation hardware for all three mounts is included. Connect the arm assembly to the door frame bracket, then adjust closing speed, latch speed, and (where applicable) backcheck using the included wrench. Most installations take 30-45 minutes.
What size door does the LH8016 fit?
The LH8016 is rated for doors up to 60 in. (interior) / 48 in. (exterior) wide and 250 lbs. This makes it suitable for extra heavy duty applications. For larger doors, see our heavier-duty models.
Is the LH8016 ANSI Grade 1?
Yes — the LH8016 meets ANSI/BHMA A156.4 Grade 1. It has been third-party tested per BHMA standards and certified for commercial use.
What products does the LH8016 compare to?
The LH8016 is engineered as a direct functional and footprint replacement for: LCN 4040XP / 4041 · Norton 8501 · Sargent 1431. In many cases the existing mounting holes will line up with no re-drilling required.
Is it ADA compliant?
Yes. The LH8016 can be adjusted to meet ADA opening-force requirements (5 lbs maximum for interior doors). Adjustment screws are accessible on the closer body — no disassembly required.
What finishes are available?

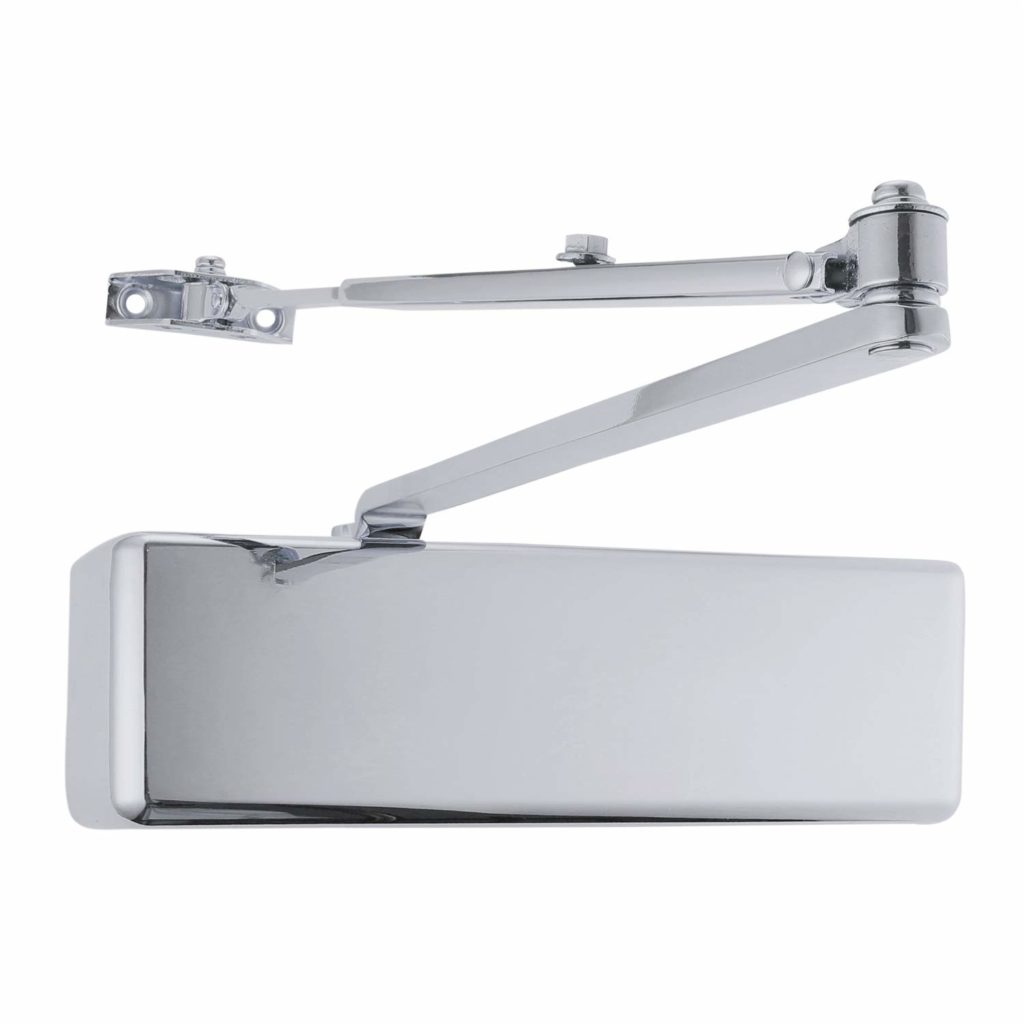

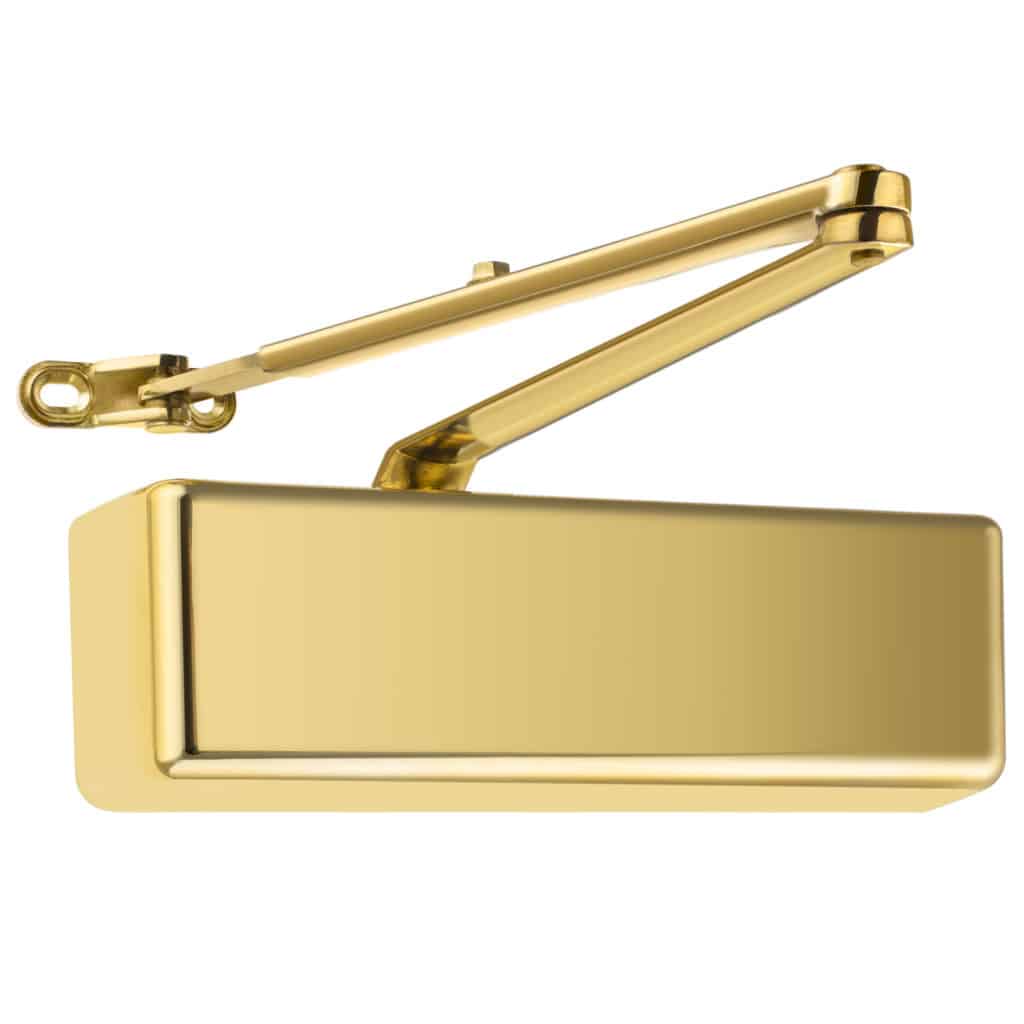

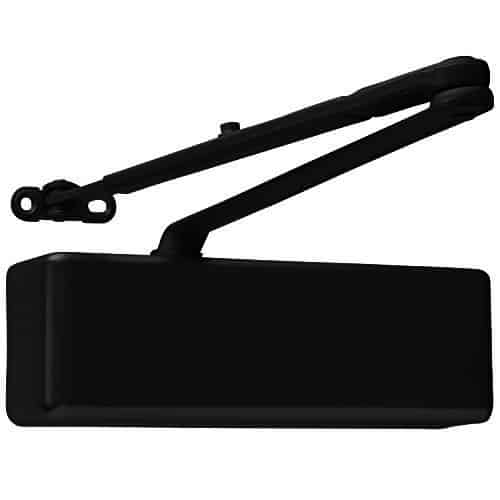

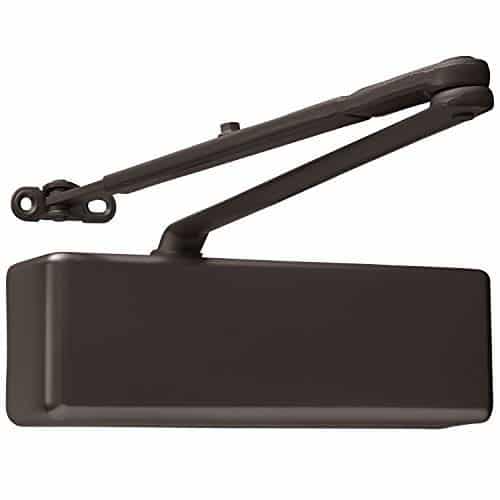

The LH8016 ships in multiple finishes — see the swatches above. The most common are Aluminum (AL), Dark Bronze (DU/690), Painted Brass (PB), Matte Black (US19), and Polished Chrome (US26). All are powder-coated for long-term corrosion resistance.
