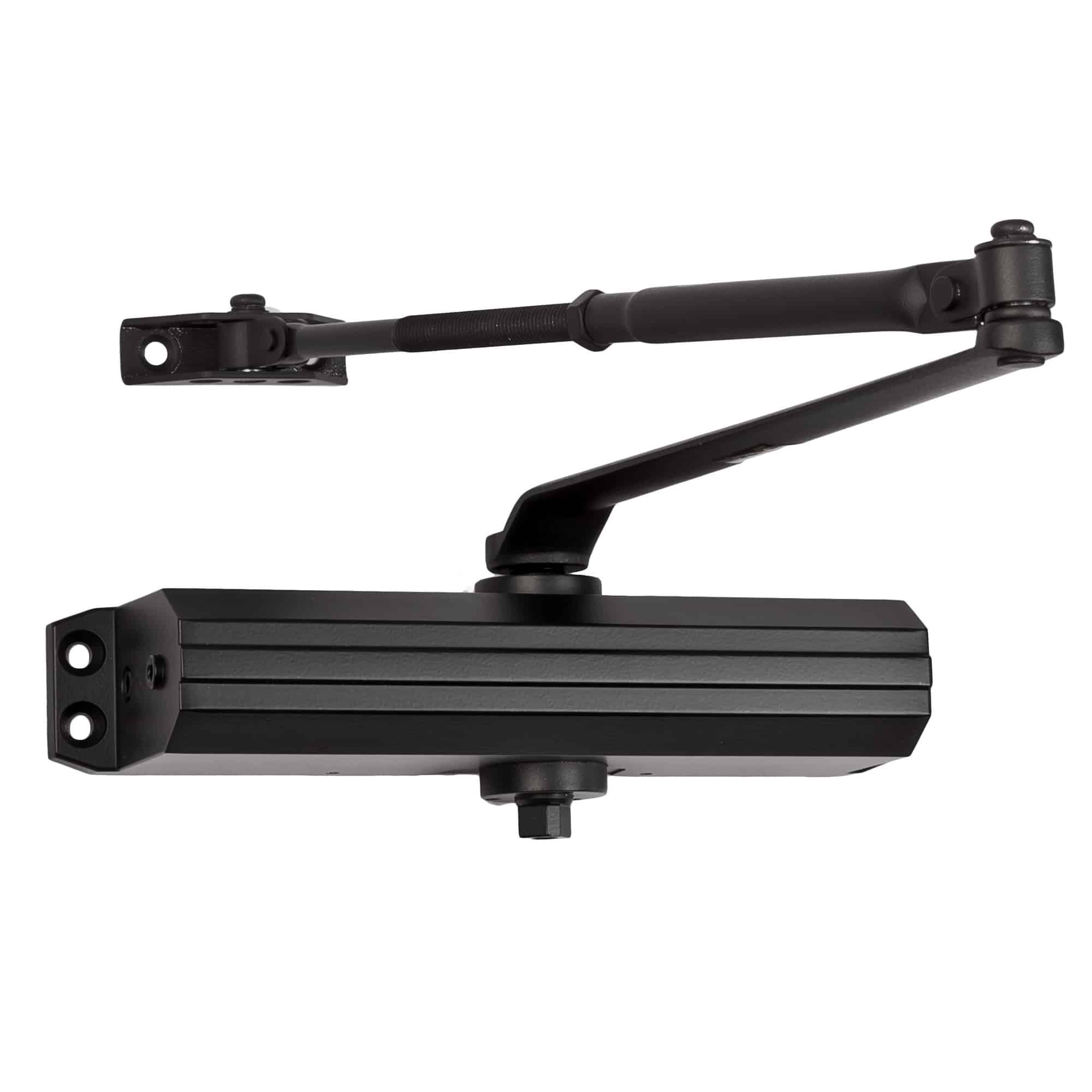

Medium/Heavy Duty Commercial Door Closer LH5016 — Lawrence Hardware EMBASSY Series
Matte Black (US19)
In stock
$183.98
Sale price
$183.98
Regular price
Skip to product information
![]()
Medium/Heavy Duty Commercial Door Closer LH5016 — Lawrence Hardware EMBASSY Series
Medium/heavy duty commercial door closer for storefronts and steady daily traffic. Grade 1, carries up to 150 lbs on doors to 60 inches wide.
$183.98
Sale price
$183.98
Regular price
Finish Matte Black (US19)
In stockQuick Ship · 30-day returns. See return policy
Discount per Quantity
1+
$183.98
5+
$165.59
save 10%
11+
$156.39
save 15%
26+
$147.19
save 20%
51+
$137.99
save 25%
- — Sold out
- — Sold out
Mix any options you like — the total quantity sets the discount.
0 items
Key specifications
- Medium/Heavy Duty closer — specified for medium to high traffic on an entrance door used indoors or outdoors
- ANSI-certified Grade 1 — the commercial rating a specifier expects on a door the public uses
- Fits doors up to 60" — measure the door before ordering
- Power Size #1-6 Adjustable — dial the closing force to the door and the traffic it sees
- Fully Adjustable — tune the whole cycle, including power level, sweep speed, latch speed and backcheck
- ADA capable and UL listed as Fire Rated — set the closing force to the ADA level after installing
- Three mounting options — regular, top jamb, or parallel arm to fit virtually any frame and door stop
- 30-Year Warranty — three decades of coverage on one closer
 |  |  |  | |
|---|---|---|---|---|
| Specifications | ||||
Model Model is the general product. Whereas "SKU" is a specific variant based on options you choose at the top.
|
|
|
|
|
Price Price varies by finish
|
From $149.98 |
From $179.98 |
$122.99 |
|
Brand |
Lawrence Hardware
|
Lawrence Hardware
|
Lawrence Hardware
|
Lawrence Hardware
|
Duty Level The traffic level the product is built for. Light, medium, heavy, or extra heavy duty.
|
|
|
|
|
Max Door Weight The heaviest door this is rated to carry
|
|
|
|
|
Openings per Day The approximate number of door openings per day the closer is rated for
|
|
|
|
|
Power Size The closing force, sized to the door. #1-2 suit narrow interior doors, #3-4 standard doors, #5-6 wide or exterior doors. Adjustable models let you customize closing force (e.g. increase for windy areas, reduce for ADA compliance, etc.)
|
|
|
|
|
Adjustments Which settings can be adjusted after installation, including closing force and the speeds at different points in the opening and closing movements
|
|
|
|
|
Max Door Width |
|
|
|
|
Body Length |
|
|
|
|
Body Height |
|
|
|
|
Body Projection How far the closer stands out from the face of the door
|
|
|
|
|
Screw Center-to-Center Widths Horizontal distance between the mounting screw holes, measured hole center to hole center
|
|
|
|
|
Screw Center-to-Center Heights Vertical distance between the mounting screw holes, measured hole center to hole center
|
|
|
|
|
Available Finishes Every finish this model is made in, not only the one shown
|
|
|
|
|
Compliance Standards The ANSI/BHMA, UL, ADA and other standards this product is certified to
|
|
|
|
|
| With Homebuilders Hardware | ||||
Warranty |
|
|
|
|
Same Day Shipping Ships out today (if ordered during business hours)
|
|
|
|
|
About the brand
Lawrence Hardware
Lawrence Hardware has manufactured commercial door hardware since 1876. Its hardware is certified or built to ANSI/BHMA standards. Trusted by contractors, builders, and architects across North America for nearly 150 years.
The LH5016 is the medium/heavy duty closer in the Embassy Series from Lawrence Hardware, made for aluminum storefronts, offices, classrooms and hotel corridors — doors that see steady use all day without the punishment of a main public entrance. It is certified Grade 1 to ANSI/BHMA A156.4 past 2,000,000 cycles and rated for roughly 2,000 openings a day.
Why this one
It is the least expensive closer we sell that still carries the Grade 1 rating and the full #1–#6 adjustable spring. That combination is the point: one unit covers a wide range of doors up to 150 lbs and 60 inches, so a building with mixed openings can standardize on a single model instead of stocking three.
What to check before you order
The door. Up to 150 lbs and up to 60 inches wide. A heavier exterior door belongs on the LH816 or the LH8016.
The frame. Regular arm, top jamb and parallel arm hardware all ship in the box. Check the clearance at your door stop first.
The closing force. Spring power #1 through #6 is set at installation. Dial it to the door, and to the ADA limit where the opening has to be accessible.
Good to know
Sweep speed, latch speed and backcheck are all adjustable once it is mounted. Unlike the LH816 and LH8016, the LH5016 does not offer delayed action — if you need the door to pause before it starts to close, choose one of those instead. It does not hold the door open on its own either.
If the door is heavier or the entrance busier than this, step up to the LH816. The LH8016 is the choice for the heaviest doors in a building.
- 1× LH5016 closer body
- 1× Standard arm assembly
- Mounting hardware kit
- Installation template
- Adjustment wrench
Same Day Shipping
Free standard shipping on orders of $299 or more.
Quick Ship items can be returned within 30 days, unused and in their original packaging (20% restocking fee).
Made-to-Order items are custom produced for your order and are final sale.
See our Shipping Policy and Refund & Return Policy.
How does the installation process work for the LH5016?
Mount the closer body to the door using the included screws and template. The LH5016 supports regular arm, top-jamb, and parallel-arm mounting — installation hardware for all three mounts is included. Connect the arm assembly to the door frame bracket, then adjust closing speed, latch speed, and (where applicable) backcheck using the included wrench. Most installations take 30-45 minutes.
What size door does the LH5016 fit?
The LH5016 is rated for doors up to 48 in. wide and 180 lbs. This makes it suitable for medium/heavy duty applications. For larger doors, see our heavier-duty models.
Is the LH5016 ANSI Grade 1?
Yes — the LH5016 meets ANSI/BHMA A156.4 Grade 1. It has been third-party tested per BHMA standards and certified for commercial use.
What products does the LH5016 compare to?
The LH5016 is engineered as a direct functional and footprint replacement for: LCN 1450 · Norton 7500 · Sargent 351. In many cases the existing mounting holes will line up with no re-drilling required.
Is it ADA compliant?
Yes. The LH5016 can be adjusted to meet ADA opening-force requirements (5 lbs maximum for interior doors). Adjustment screws are accessible on the closer body — no disassembly required.
What finishes are available?
The LH5016 ships in multiple finishes — see the swatches above. The most common are Aluminum (AL), Dark Bronze (DU/690), Painted Brass (PB), Matte Black (US19), and Polished Chrome (US26). All are powder-coated for long-term corrosion resistance.
