Light Duty Cast Aluminum Door Closer LH302 — Lawrence Hardware EMBASSY Series

Light Duty Cast Aluminum Door Closer LH302 — Lawrence Hardware EMBASSY Series

Compare to LCN 1370 · Norton 1602

Light duty door closer made from cast aluminum, for interior residential and light commercial doors. Fixed at power size #2, which takes only about 3 lbs of force to open.
$66.99
$66.99
Finish
LH302-PB
Finish Painted Brass (PB)

In stockQuick Ship · 30-day returns. See return policy

Discount per Quantity
1+ $66.99
5+ $60.30 save 10%
11+ $56.95 save 15%
26+ $53.60 save 20%
51+ $50.25 save 25%

Key specifications

  • Light duty at about 40 openings a day — the right size for a very light door or a small pool gate
  • ANSI certified Grade 2 — the commercial rating for light commercial or residential use
  • Power Size 2 and ADA compliant — takes only 3 lbs of force, so almost anyone can open the door
  • Adjustable Speed and Latching — set the closing speed and the final latching swing after mounting
  • Fits doors up to 36" wide — intended for very light doors and small pool gates, not main entrances
  • Backed by a 10 Year Warranty — a decade of covered service

About the brand

Lawrence Hardware

Lawrence Hardware has manufactured commercial door hardware since 1876. Its hardware is certified or built to ANSI/BHMA standards. Trusted by contractors, builders, and architects across North America for nearly 150 years.

See more from Lawrence Hardware →

The LH302 is the light duty closer in the Embassy Series from Lawrence Hardware, made for interior doors in homes and light commercial spaces — pantry and closet doors, small apartment doors, bathrooms. It is certified Grade 2 to ANSI/BHMA A156.4 and carries doors up to 75 lbs and 36 in. wide.

Why this one

At power size #2 it needs only about 3 lbs of force to open, which is what makes it ADA capable and easy for almost anyone to push. That light touch is the whole point of the model. It is the closer for a door that people should barely notice is closing itself.

What to check before you order

The closing force is fixed. This closer is set at the factory to power size #2 and cannot be adjusted up or down after it is installed. That is what keeps it simple and affordable, and it is the one thing to get right before ordering: size #2 is right for a light interior door in a sheltered spot. A door that catches a draft, or an exterior door of any kind, needs more force than this closer can give — look at the LH303 or the LH503 instead.

The door. Up to 75 lbs, up to 36 in. wide. It mounts regular arm or top jamb.

Good to know

Latch speed and sweep speed are adjustable after mounting, but the spring force is not. There is no backcheck on this model, so on a door that gets thrown open hard, step up to the LH503.

For a slightly firmer close on a similar door, look at the LH303.

Light Duty — Residential and Low-traffic Commercial Spaces. This grade 2, spring-power size 2 door closer is ideally suited for light doors or gates such as interior doors, pool gates, other light commercial and residential doors.

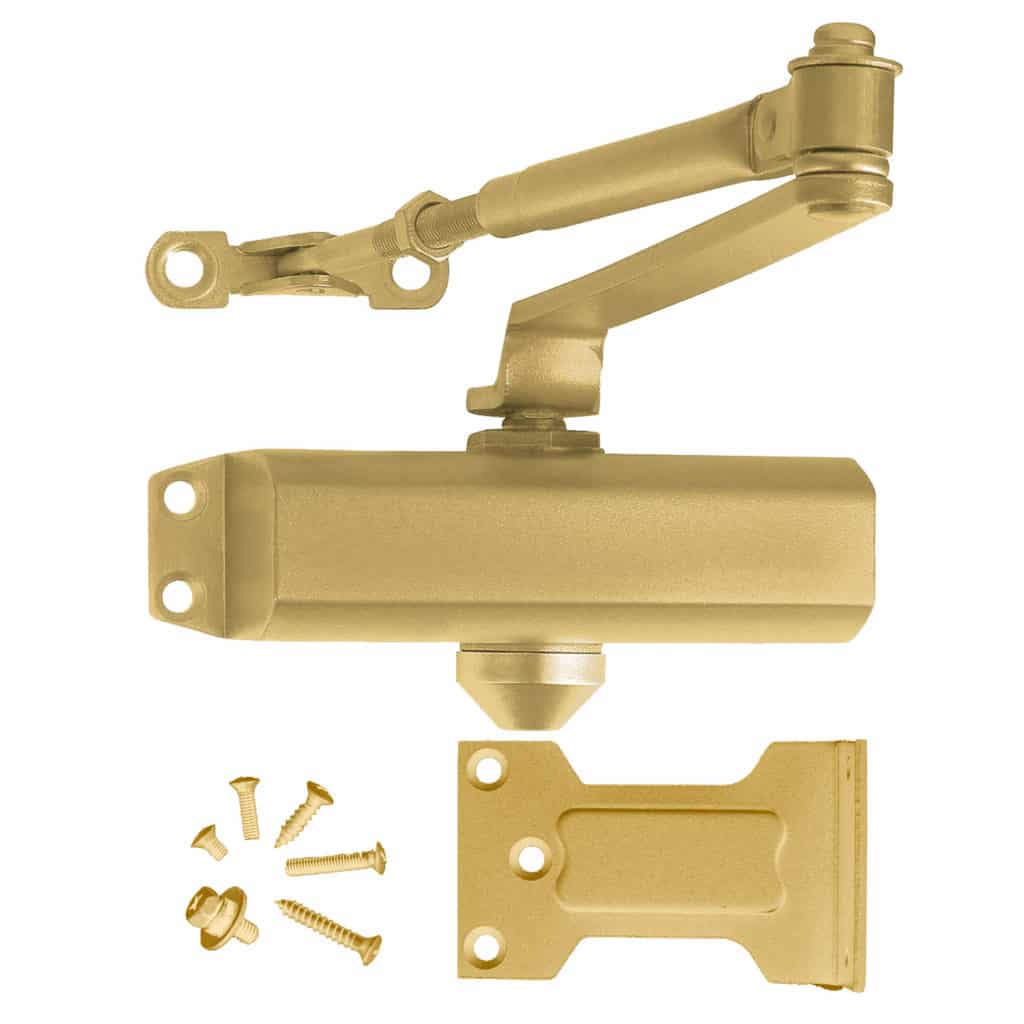

  • 1× LH302 closer body
  • 1× Standard arm assembly
  • Mounting screws
  • Installation template

Same Day Shipping

Free standard shipping on orders of $299 or more.

Quick Ship items can be returned within 30 days, unused and in their original packaging (20% restocking fee).

Made-to-Order items are custom produced for your order and are final sale.

See our Shipping Policy and Refund & Return Policy.

How does the installation process work for the LH302?
Mount the closer body to the door using the included screws and template. The LH302 supports regular arm, top-jamb, and parallel-arm mounting — installation hardware for all three mounts is included. Connect the arm assembly to the door frame bracket, then adjust closing speed, latch speed, and (where applicable) backcheck using the included wrench. Most installations take 30-45 minutes.
What size door does the LH302 fit?
The LH302 is rated for doors up to 32 in. wide and 100 lbs. This makes it suitable for light duty applications. For larger doors, see our heavier-duty models.
Is the LH302 ANSI Grade 1?
Yes — the LH302 meets ANSI/BHMA A156.4 Grade 3. It has been third-party tested per BHMA standards and certified for commercial use.
What products does the LH302 compare to?
The LH302 is engineered as a direct functional and footprint replacement for: LCN 1370 · Norton 1602. In many cases the existing mounting holes will line up with no re-drilling required.
Is it ADA compliant?
Yes. The LH302 can be adjusted to meet ADA opening-force requirements (5 lbs maximum for interior doors). Adjustment screws are accessible on the closer body — no disassembly required.
What finishes are available?
The LH302 ships in multiple finishes — see the swatches above. The most common are Aluminum (AL), Dark Bronze (DU/690), Painted Brass (PB), Matte Black (US19), and Polished Chrome (US26). All are powder-coated for long-term corrosion resistance.
