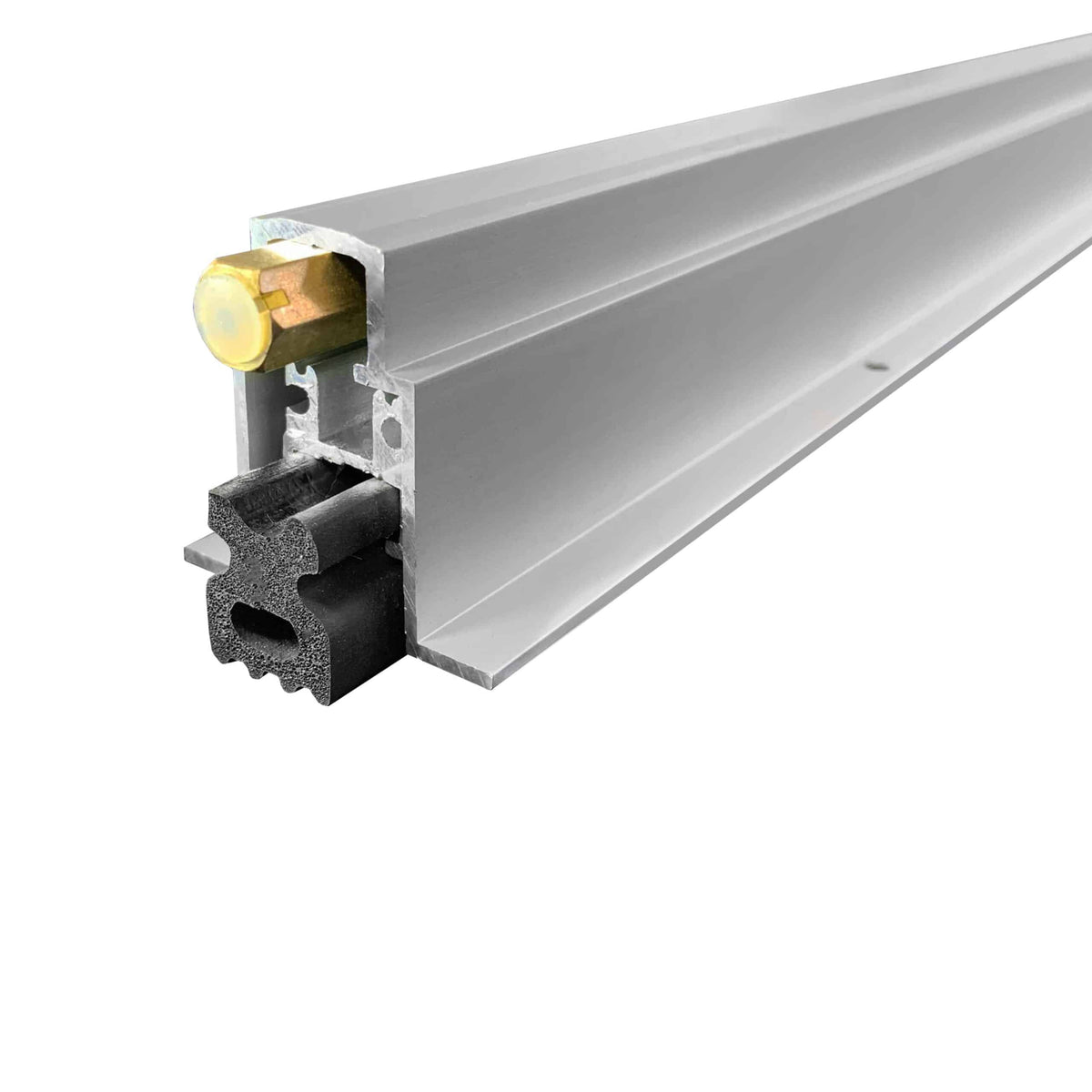

Automatic Door Bottom, Heavy Duty, Concealed - Neoprene Sponge - max 1" Drop
108" / Standard
Made to order
$377.98
Sale price
$377.98
Regular price
Skip to product information
Automatic Door Bottom, Heavy Duty, Concealed - Neoprene Sponge - max 1" Drop
Automatic door bottom, heavy duty, mortised mounted, concealed, with a neoprene rubber sponge and a 1" drop. Seals to the floor as the door closes and lifts clear as it opens.
$377.98
Sale price
$377.98
Regular price
FinishClear Anodized Aluminum
Length 108"Accessibility Standard
Made to order — ships in 7 business daysFinal sale. See return policy
Discount per Quantity
1+
$377.98
5+
$340.19
save 10%
11+
$321.29
save 15%
26+
$302.39
save 20%
51+
$283.49
save 25%
Key specifications
- Drops automatically on closing — the seal seats against the floor, then lifts clear as the door opens
- Blocks sound, light, air, smoke, and insects — the reason studios, hotels, and offices use them
- Neoprene seal — an automatic door bottom that closes the gap between the door and the threshold
- Clear anodized aluminum housing, Mortised — no paint to chip and nothing to rust at the floor
- Heavy duty build, tested through 5 million cycles — made for the doors that get used the most
- Available fire rated — acoustical ratings come from OEM tests on specific door assemblies
 |  |  |  | |
|---|---|---|---|---|
| Specifications | ||||
Model Model is the general product. Whereas "SKU" is a specific variant based on options you choose at the top.
|
|
|
|
|
Price Price varies by width and finish
|
From $107.18 |
From $70.04 |
From $112.53 |
From $70.80 |
Brand |
Embassy Hardware
|
Embassy Hardware
|
Embassy Hardware
|
Embassy Hardware
|
Mount Type Surface-mounted gets screwed to the face of the door. Mortised sits in a channel that needs to be routed into the door bottom.
|
|
|
|
|
Seal Design The shape of the seal that drops. Gasket, bulb, double bulb, sponge, etc.
|
|
|
|
|
Housing Height |
|
|
|
|
Housing Width How wide the aluminum housing is. On surface-mounted models this is how far it sticks out from the door face. On mortised models it is how wide a channel the door bottom needs.
|
|
|
|
|
Seal Material What the seal is made of. Neoprene is the standard rubber and handles everyday temperatures well. Silicone costs more but stays flexible in extreme cold and holds up to heat.
|
|
|
|
|
Drop How far the seal drops when the door shuts. It closes gaps up to this size.
|
|
|
|
|
Duty Level The traffic level the product is built for. Light, medium, heavy, or extra heavy duty.
|
|
|
|
|
Fire Rating How long the product holds up in a fire door assembly, or whether a fire rated version can be ordered
|
|
|
|
—
|
Available Lengths The lengths we stock, measured to run across the width of your door. Other lengths are made to order, call or email for a size not listed.
|
|
|
|
|
Finish |
|
|
|
|
Compliance Standards The ANSI/BHMA, UL, ADA and other standards this product is certified to
|
|
|
|
|
| With Homebuilders Hardware | ||||
Ships Within (Business Days) Business days before it leaves the warehouse
|
|
|
|
|
About the brand
Embassy
Embassy is Homebuilders Hardware's premium residential and architectural brand. Designed for builders and homeowners who demand top-tier finish quality, durability, and a refined aesthetic. Backed by our Product Guarantee.

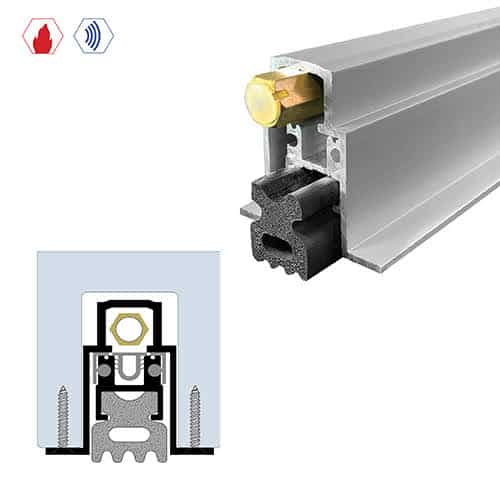

An automatic door bottom, mortised mounted, with a neoprene rubber sponge in an aluminum housing. Heavy Duty. A plunger at the hinge end pushes the seal down onto the floor as the door shuts, and lets it lift again as the door opens.
Why this rather than a door sweep
A sweep drags along the floor every time the door moves. An automatic door bottom only touches the floor when the door is closed, so it seals just as tightly without wearing the floor, catching on carpet, or making the door harder to push. On a door that opens hundreds of times a day, or over a finished floor you care about, that is the whole argument.
What to check before you order
The gap under your door. This unit drops 1". Measure the gap at its widest point — if the floor is uneven, measure where the gap is largest.
The mortise. It fits into a slot routed into the bottom of the door, so the door has to be prepped or prepped-able. Nothing shows once it is in.
Cut to length from the sizes listed. Fire rated — the fire label is available on request.
- Includes 1 pair of end caps and set of screws.
Free standard shipping on orders of $299 or more.
Quick Ship items can be returned within 30 days, unused and in their original packaging (20% restocking fee).
Made-to-Order items are custom produced for your order and are final sale.
See our Shipping Policy and Refund & Return Policy.
