Adjustable Brush Door Sweep (Self-Adjusting) - Surface Mounted - Sweep Height of 1/4" (6.4mm)

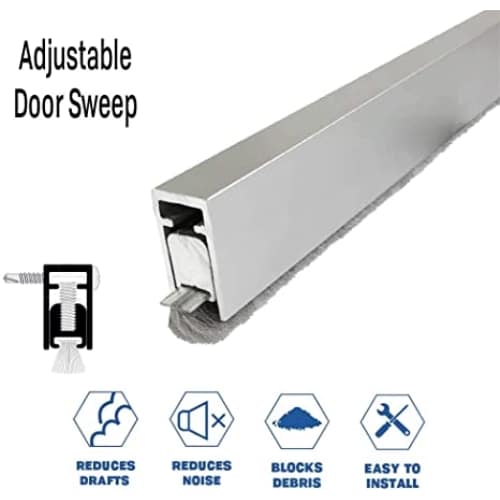

Door sweep EC7178, with a dense pile brush, surface mounted, self-adjusting, 1/4" deep. Closes the gap under the door against drafts, dust, noise and pests. Cut to length from 24" to 144".
$41.71
Sale price
$41.71
Regular price
Length 24"Finish Clear Anodized
Made to order — ships in 7 business daysFinal sale. See return policy
Discount per Quantity
1+
$41.71
5+
$37.54
save 10%
11+
$35.46
save 15%
26+
$33.37
save 20%
51+
$31.29
save 25%
Key specifications
- Pile brush sweep on an aluminum bar — surface mounts to the door face with screws, no routing
- Blocks dust, drafts, pests, and some sound — the gap under a door is where most of it gets in
- Seals the gap between the door bottom and the threshold — measure that gap before picking a size

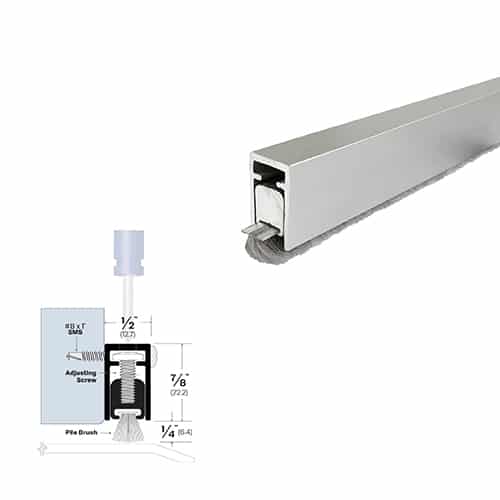

- 1/2" mounting thickness — that is how far the aluminum bar stands off the face of the door
- 7/8" mounting bar height — you need that much flat door face above the bottom edge to screw into
- 1/4" sweep height — the brush sits that far below the aluminum bar to reach the floor
- Adjustable height — a screw sets how far the brush hangs, so you can dial it in after installing
- Brush seal works even without a threshold — it closes the gap over a bare floor, and installs fast
- Clear Anodized Aluminum Finish — the color is in the metal, so there is no paint to chip or peel
- Security fasteners available on request — call or email if the door sits in a public, high-traffic spot
 |  |  | |
|---|---|---|---|
| Specifications | |||
Model "Model" is the general product. "SKU" is a specific variant of the general product based on options you choose (when relevant).
|
|
|
|
Price Price varies by length and finish
|
From $41.71 |
From $49.91 |
From $32.13 |
Brand |
Embassy Hardware
|
Embassy Hardware
|
Embassy Hardware
|
Type The style of sweep, based on the sealing material (rubber, brush, silicone) combined with how it mounts
|
|
|
|
Seal Material What the seal itself is made of. Silicone stays flexible in both cold and heat temperature extremes; pile brush suits doors that sweep across the seal.
|
|
|
|
Mounting Surface-mounted gets screwed to the face of the door. Mortise-mounted sits in a groove cut into the door bottom.
|
|
|
|
Sweep Height |
|
|
|
Mounting Height |
|
|
|
Mounting Thickness |
|
|
|
Available Finishes Every finish this model is made in, not only the one shown
|
|
|
|
Options by Request Extras we can supply on request. Call or email before ordering.
|
|
|
|
Installation Details related to installation
|
|
|
|
| With Homebuilders Hardware | |||
Ships Within (Business Days) Business days before it leaves the warehouse
|
|
|
|
About the brand
Embassy
Embassy is Homebuilders Hardware's premium residential and architectural brand. Designed for builders and homeowners who demand top-tier finish quality, durability, and a refined aesthetic. Backed by our Product Guarantee.

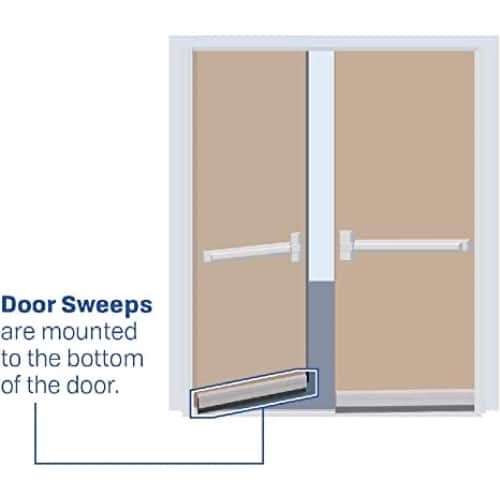

The EC7178 is a door sweep with a dense pile brush, surface mounted, self-adjusting. It closes the gap between the bottom of the door and the floor — the single biggest hole in most buildings for drafts, dust, noise and insects.
Why this seal
A brush sweeps over an uneven floor that a solid blade would catch on — tile with grout lines, a worn threshold, carpet at a doorway. It also drags less, so the door stays easy to open.
What to check before you order
The width of your door, and the gap under it. Sweeps run 24" to 144", cut to length. The seal drops 1/4" below the carrier, so that is the gap it closes. Measure both before ordering — too small a drop leaves the gap open, too large and the sweep drags.
Surface mounted — it screws to the face of the door with the fasteners supplied. No routing, no cutting, and it comes off again just as easily, which is why it is the usual choice for a retrofit.
Screws are included. Options such as fire labels, security fasteners and end caps can be added by request — contact us and we will arrange it.
- Comes with screws (#8 x 1″ SMS self-drilling screws)
Free standard shipping on orders of $299 or more.
Quick Ship items can be returned within 30 days, unused and in their original packaging (20% restocking fee).
Made-to-Order items are custom produced for your order and are final sale.
See our Shipping Policy and Refund & Return Policy.
Have a question about this product? Visit our FAQ page or contact us — we typically respond within one business day.
