Door Hinge 3.5 x 3.5 Inch Solid Brass Ball Bearing – Antique Brass (US5)

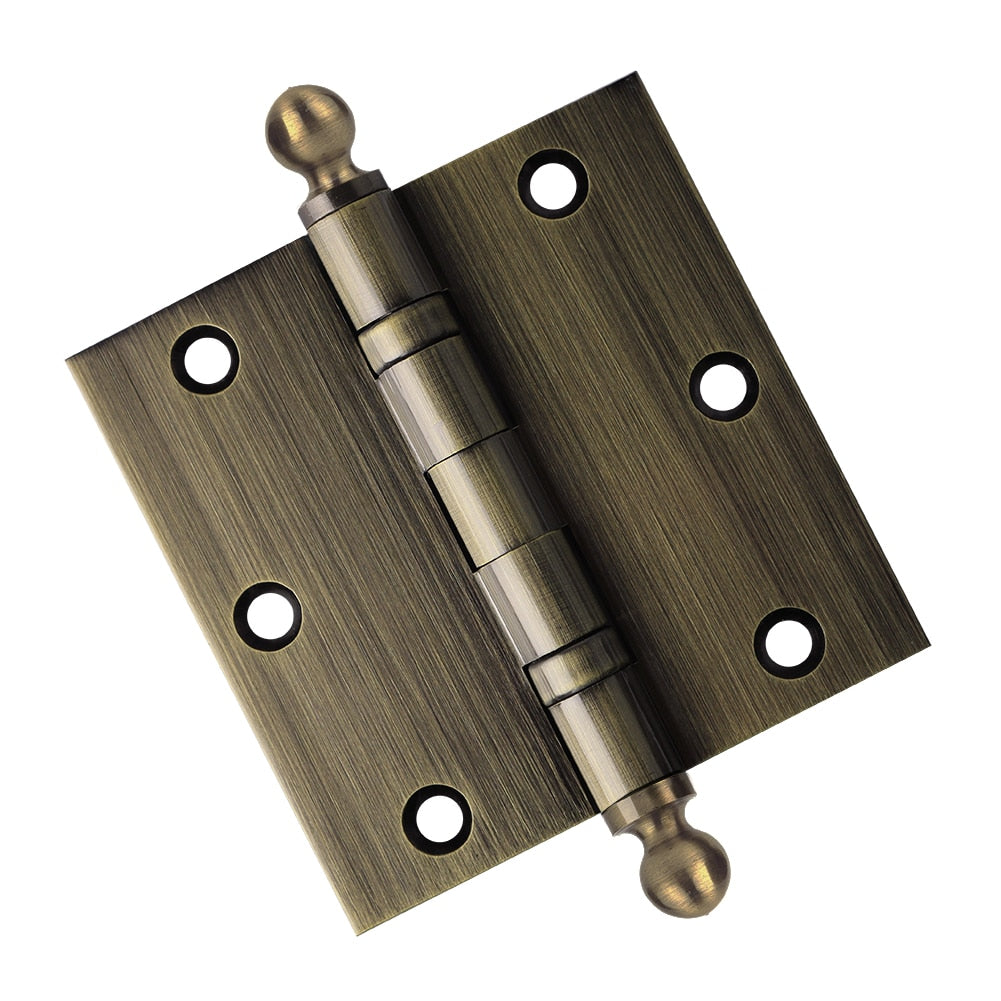

Door hinge made from solid brass with ball bearing knuckles, 3.5" x 3.5", in Antique Brass US5. The brass runs right through, so a scuff never shows a base metal underneath.
$32.07
Sale price
$32.07
Regular price
Select Options
Finials/Tips: No selection
FinishAntique Brass

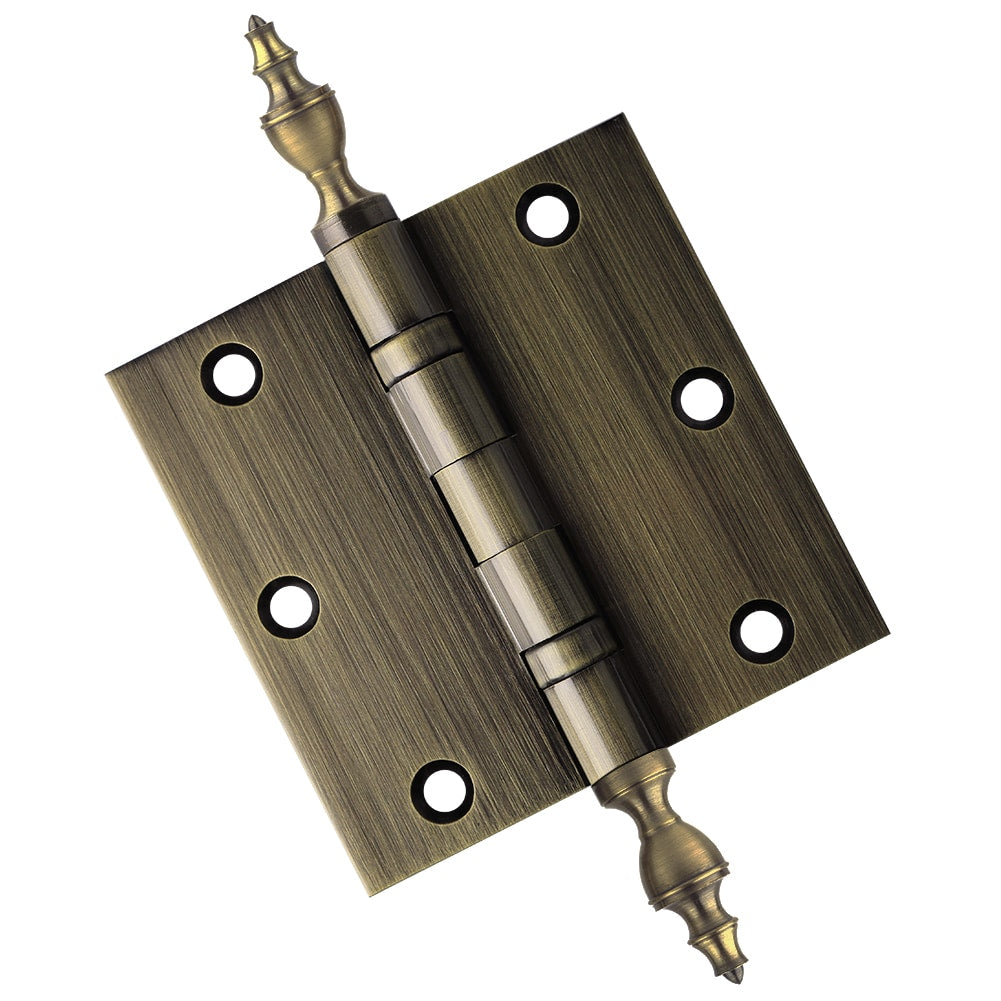

Finials/Tips Urn
In stockQuick Ship · 30-day returns. See return policy
Discount per Quantity
1+
$32.07
5+
$28.87
save 10%
11+
$27.26
save 15%
26+
$25.66
save 20%
51+
$24.06
save 25%
- — Sold out
- — Sold out
- — Sold out
- — Sold out
- — Sold out
Mix any options you like — the total quantity sets the discount.
0 items
Key specifications
- Solid Brass Construction — the color runs through the metal, so a scuff never exposes a base metal

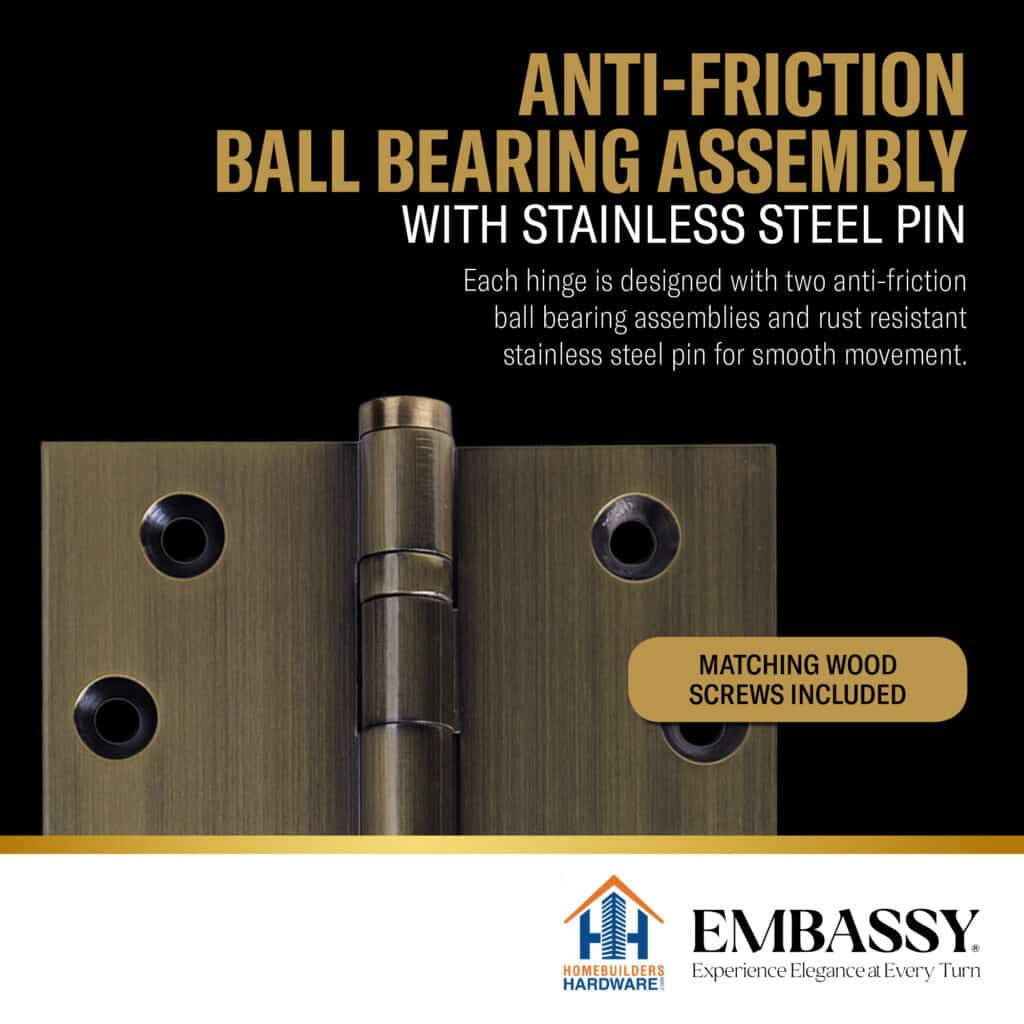

- Ball Bearing Knuckles — the bearings carry the door instead of the barrel, so the swing stays smooth and squeak-free
- Available in Antique Brass - US5 (609) — pairs with matching levers, locks, and pulls
- Hinge Size 3.5" x 3.5" — matches the mortise already cut into the door, so nothing needs chiseling
- Conforms to ANSI — clears the dimensional standard most commercial door schedules are written to
 |  |  |  | |
|---|---|---|---|---|
| Specifications | ||||
Model "Model" is the general product. "SKU" is a specific variant of the general product based on options you choose (when relevant).
|
|
|
|
|
Price Price varies by Finial / Tip.
|
From $24.58 |
From $31.00 |
From $21.97 |
From $36.35 |
Brand |
Embassy Hardware
|
Embassy Hardware
|
Embassy Hardware
|
Embassy Hardware
|

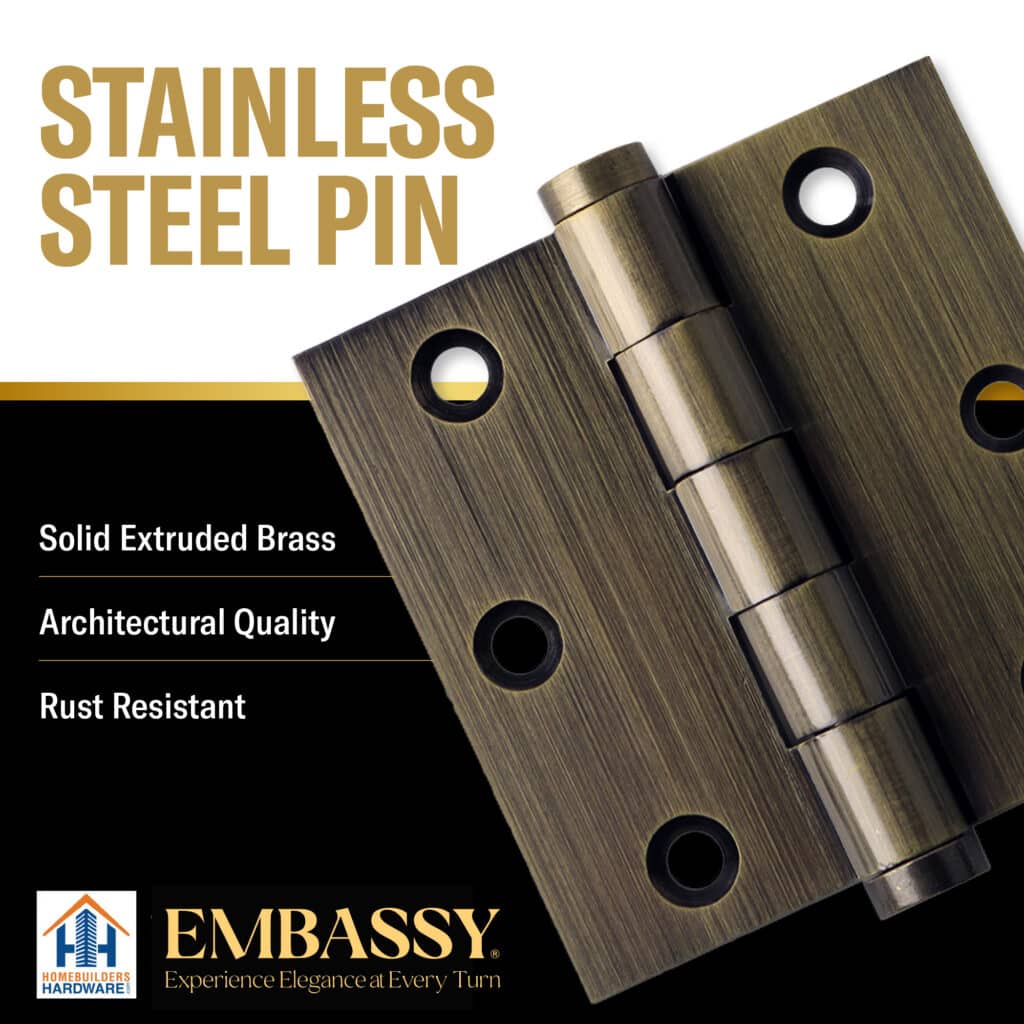

Finish Gorgeous lacquered finish on top of solid extruded brass
|
|
|
|
|
Material |
|
|
|
|

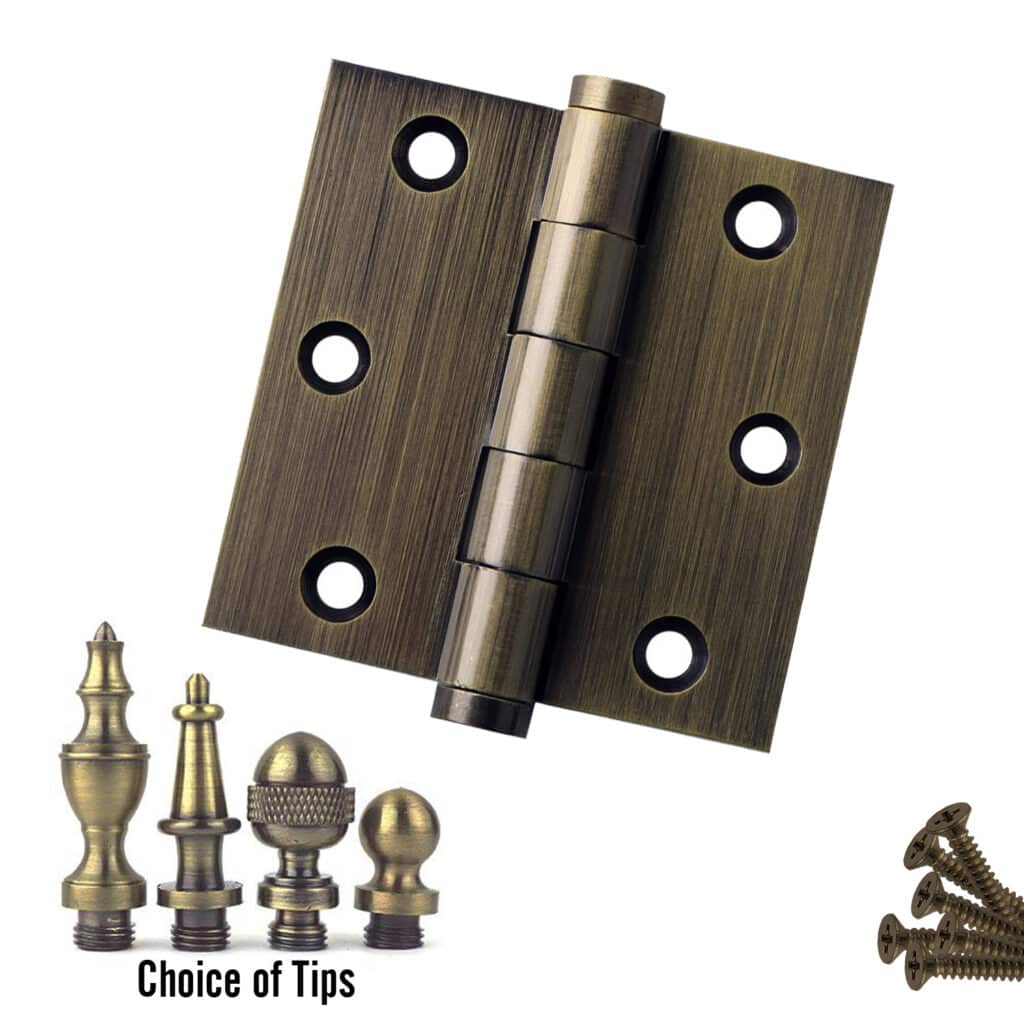

Bearing Type Only our 3" x 3" sized Solid Brass Hinges do not have Ball Bearings
|
|
|
|
|
Hinge Height |
|
|
|
|
Width |
|
|
|
|
Hinge Thickness Thickness of each leaf. More brass means less sag on heavy doors and fewer loose screws down the line.
|
|
|
|
|
Screws per Leaf Screws included, and match the hinge finish.
|
|
|
|
|
Screw Hole Pattern |
|
|
|
|
Compliance Standards |
|
|
|
|
Qty per Package |
|
|
|
|
| With Homebuilders Hardware | ||||
Warranty |
|
|
|
|
Same Day Shipping Ships out today (if ordered during business hours)
|
|
|
|
|
About the brand
Embassy
Embassy is Homebuilders Hardware's premium residential and architectural brand. Designed for builders and homeowners who demand top-tier finish quality, durability, and a refined aesthetic. Backed by our Product Guarantee.

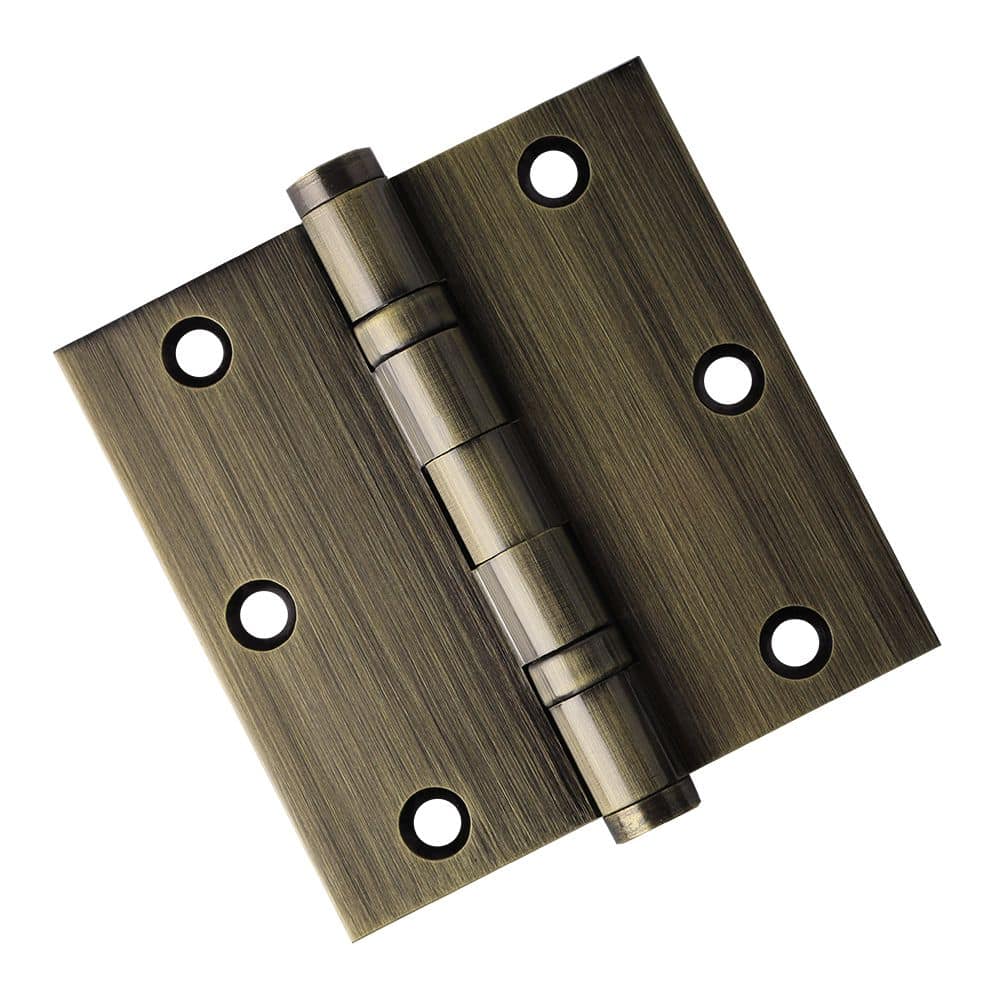

A 3.5" x 3.5" architectural door hinge in solid brass, with ball bearing knuckles, finished in Antique Brass US5. It is the hinge for an interior or entry door where the hardware is meant to be looked at as well as used.
Why solid brass, and why ball bearings
Solid brass means the color runs through the metal rather than sitting on top of it. A plated hinge that gets scuffed shows the base metal underneath; this one does not, which is why it still looks right years later on a door people touch every day.
The ball bearings sit in the knuckles and carry the door's weight, so the barrel is not grinding against itself every time the door swings. That is what keeps the action smooth and quiet as the hinge ages.
What to check before you order

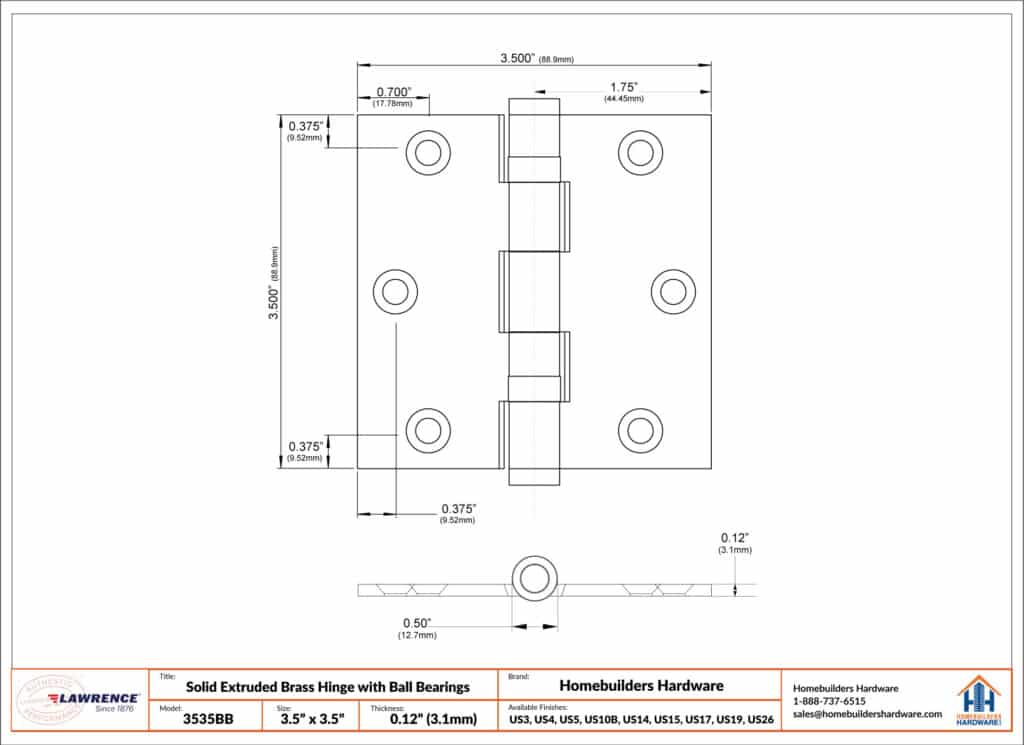

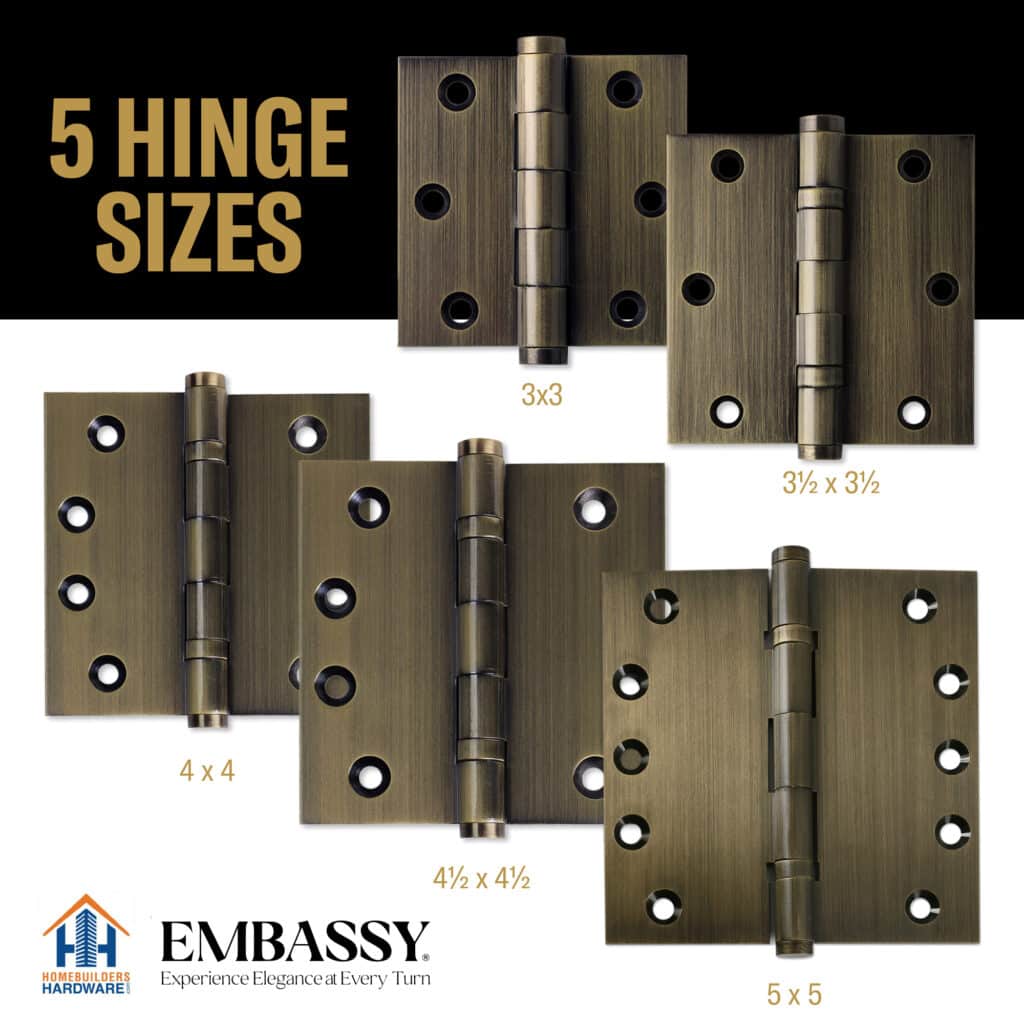

The size. This is the 3.5" x 3.5" hinge. Measure the hinge already on your door — matching the size means it drops into the mortise that is already cut, with no chiseling. Square corners and a template (arc) screw pattern, the standard prep.
The count. Sold as one hinge, not a pair or a pack. Most doors take three. It is 0.122" thick with 3 screws per leaf.
Finished in Antique Brass US5, one of nine finishes in this range, so the hinges can match the levers, locks and pulls on the same door.
The warranty
These hinges suit commercial and residential doors alike, but the warranty is narrower than the product. We warrant them free of defects in material and workmanship for five full years from the date of purchase. It covers the original purchaser, and it does not extend to hinges used in commercial applications. Full terms are printed on the insert in the box.

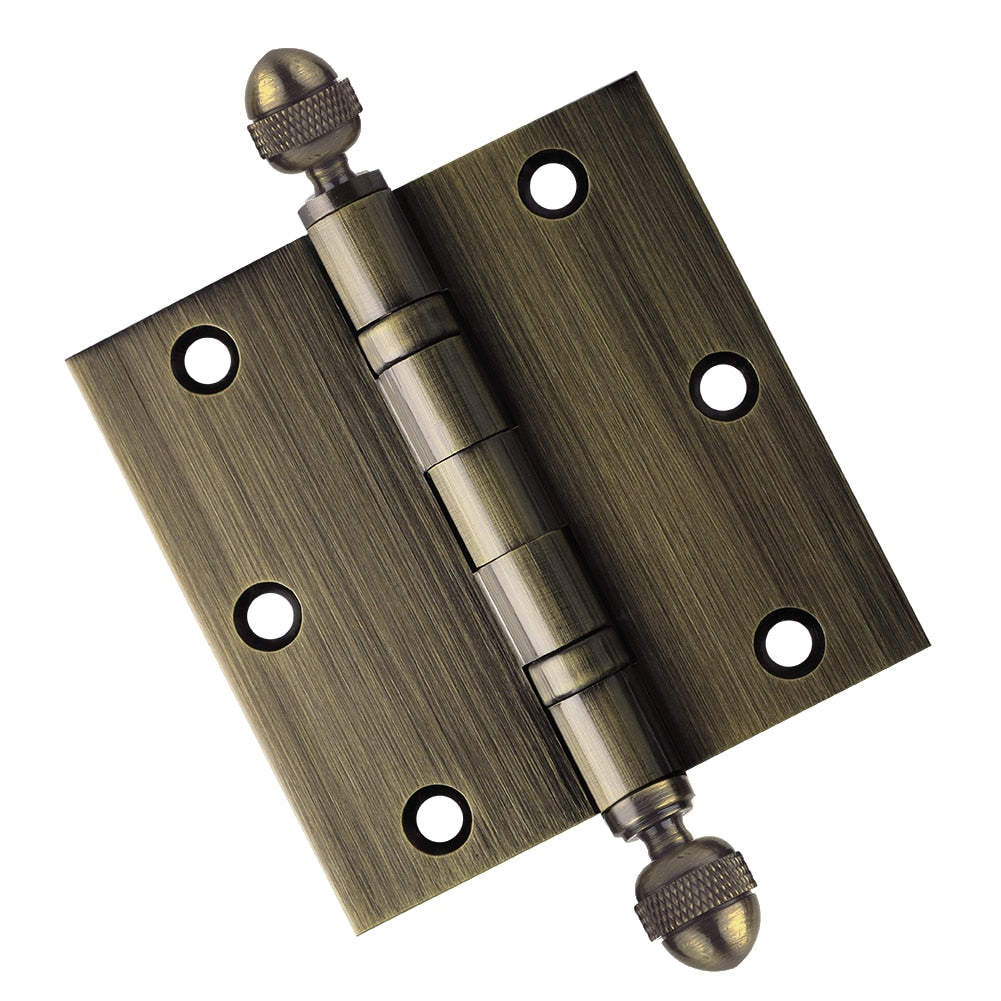

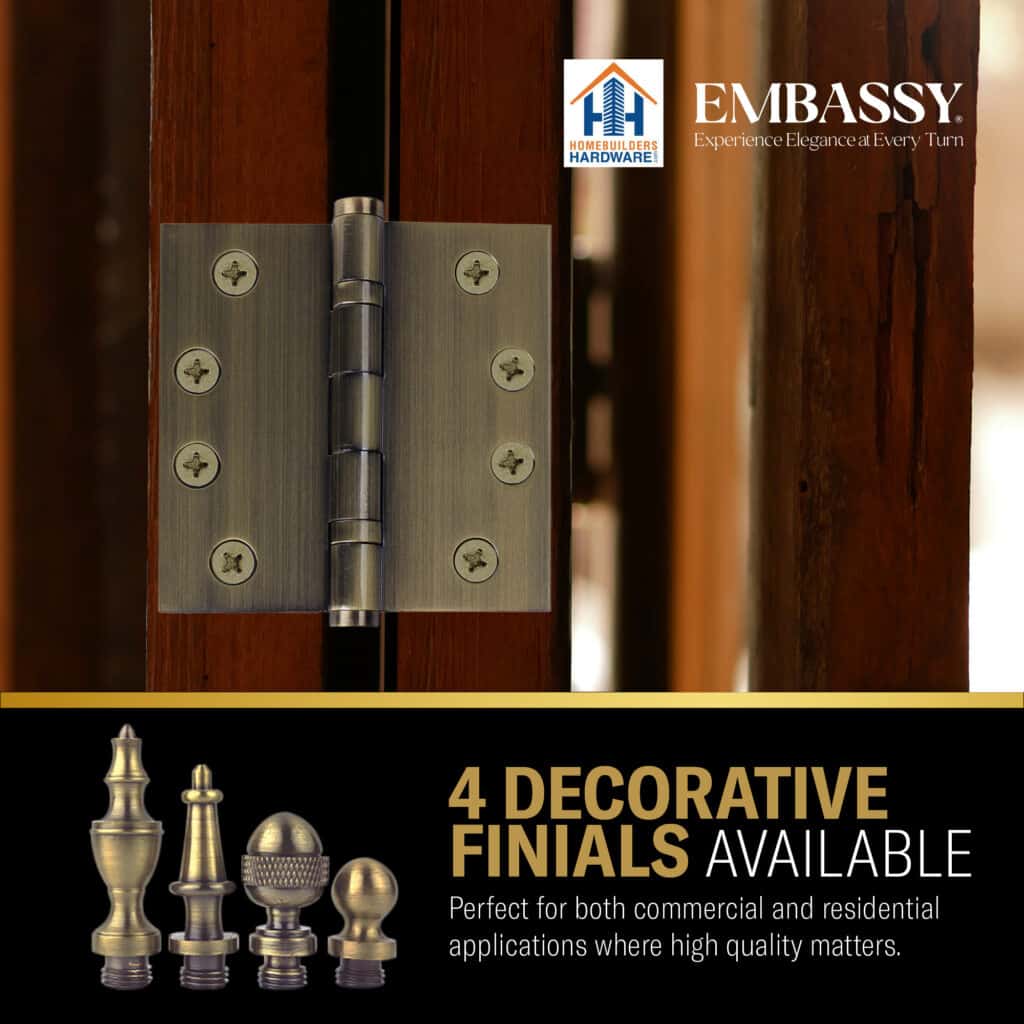

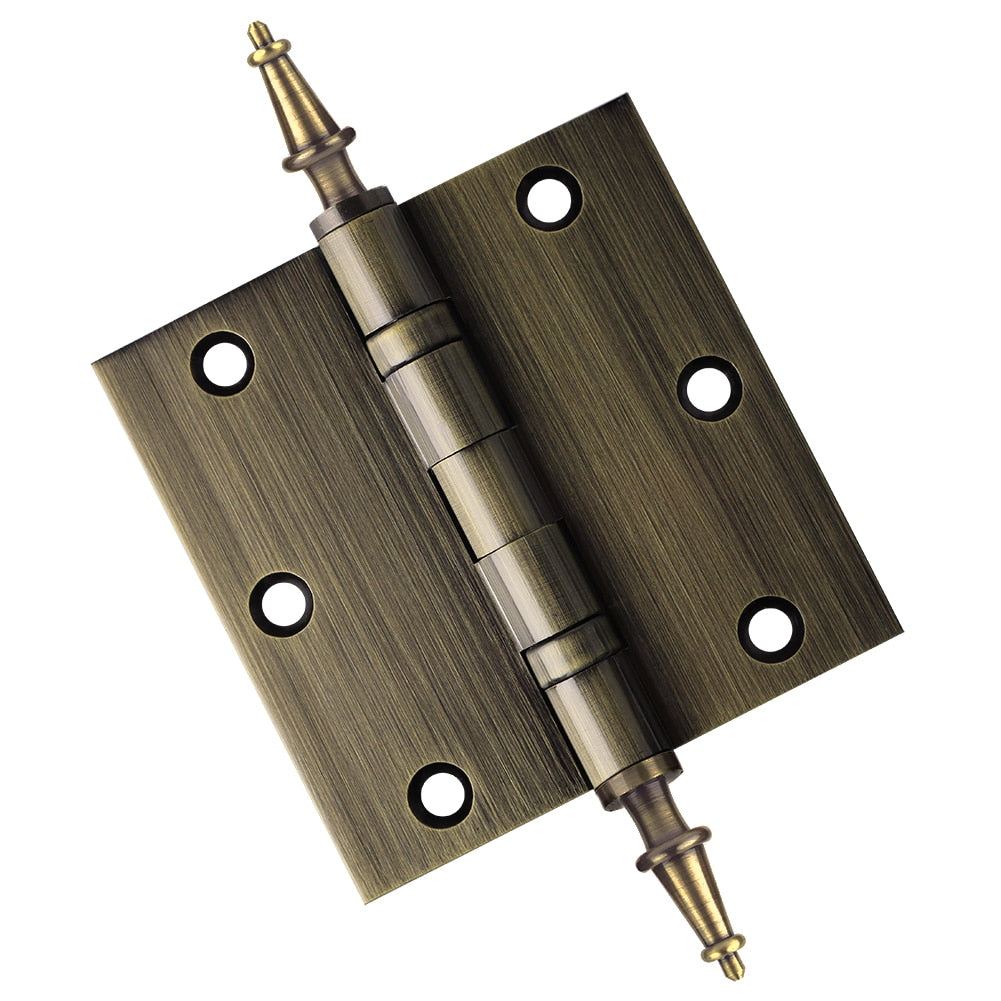

- Each 3.5 x 3.5 inch hinge comes with 6 #10 wood screws. Should you choose finials, then 2 finials will be included.
