Door Closer Installation Instructions
Pick your closer below to get its installation videos, 3D guide and printable manual. If you have not worked out your door’s handing or your mounting method yet, both are one click away and stay open while you work.
Which closer are you installing?

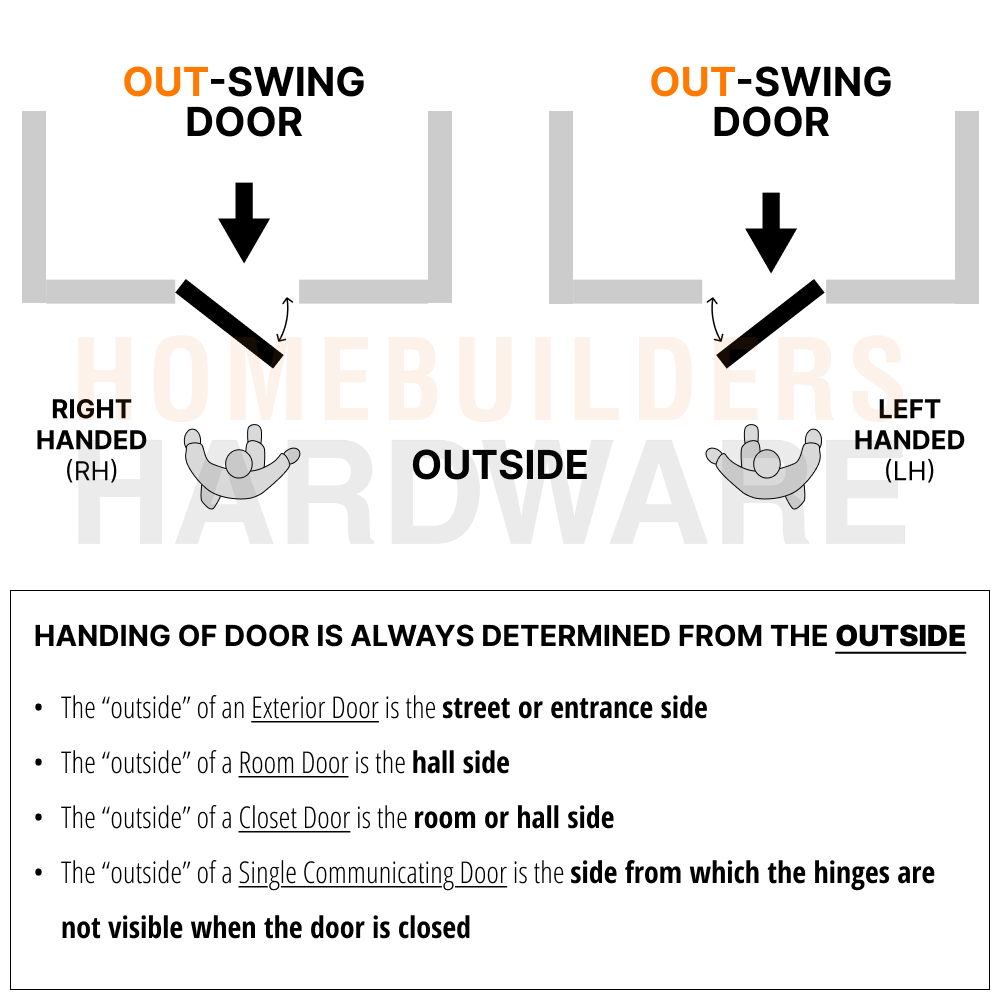

Step 1Is my door left or right handed?

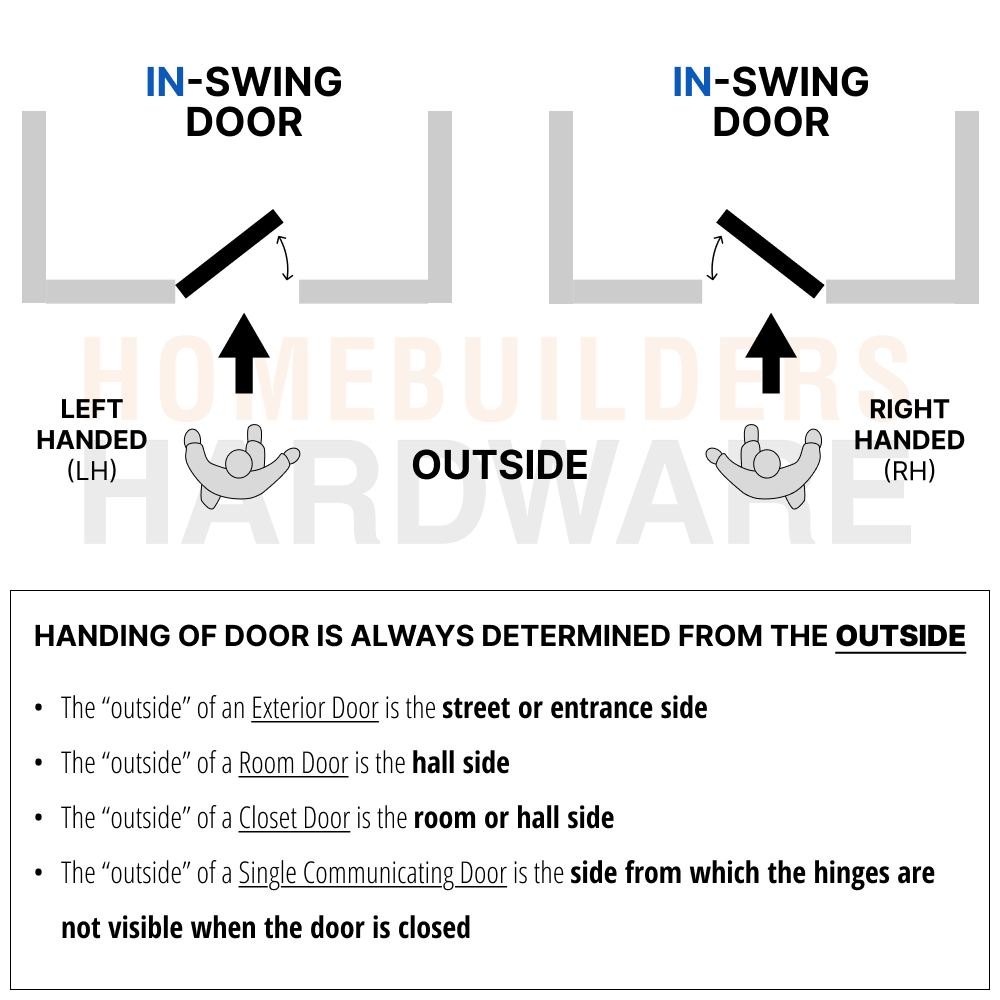

Handing decides which face of the drilling template you use and how the arm is set. Get it wrong and nothing will line up, so do this first and write the answer down.
- Stand on the side of the door that it swings away from you. That is the push side.
- Look at where the hinges are.
- Hinges on your left → left-handed door. Hinges on your right → right-handed door.
Use that one answer for all three mounting methods. Some diagrams are drawn from the pull side and some from the push side, which is why handing can seem to flip between sections. It does not.
Your drilling template is double-sided — the reverse face is the left-handed side. The standard and parallel arm templates are mirror images of each other. That is correct, not a misprint.
Step 2Which mounting method should I use?

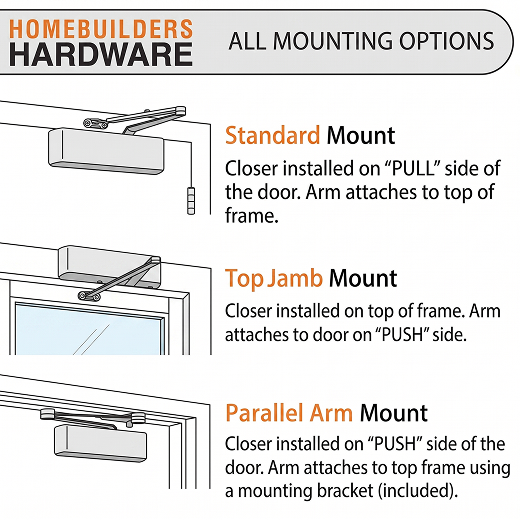

Most Embassy closers install three ways. Pick the one that suits your opening.
Choose your closer above to see its installation videos, 3D guide and printable manual.

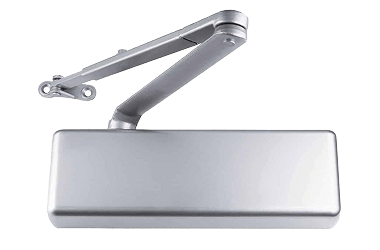

8016
Extra heavy duty · Grade 1 · high-traffic commercial 3 videos3D guidePDFBefore you start: know your door’s handing (Step 1) and your mounting method (Step 2). Both are in the cards above.
Installation videos · about 6 minutes each
Step-by-step in 3D
Free BILT app. Zoom in and change angles as you install, step by step.
- Install the free app
- Search it for your model, LH8016
Why buy from us
- Direct from Embassy’s North American seller
- The full line and every finish, in one place
- Talk to someone who knows door closers
- Volume pricing on larger orders

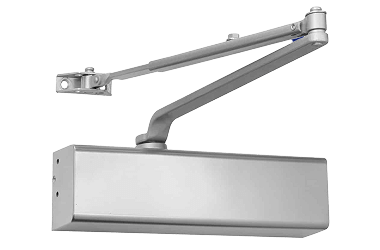

816
Heavy duty cast aluminum · Grade 1 · our most popular 2 videos3D guidePDFBefore you start: know your door’s handing (Step 1) and your mounting method (Step 2). Both are in the cards above.
Installation videos · about 6 minutes each
There is no parallel arm video for the 816 yet — the 3D guide and the PDF both cover that method.
Step-by-step in 3D
Free BILT app. Zoom in and change angles as you install, step by step.
- Install the free app
- Search it for your model, LH816
Why buy from us
- Direct from Embassy’s North American seller
- The full line and every finish, in one place
- Talk to someone who knows door closers
- Volume pricing on larger orders

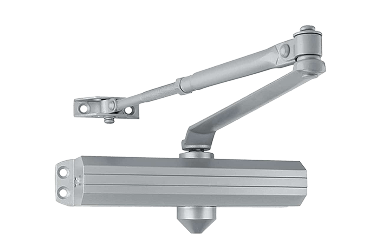

5016
Medium/heavy duty · Grade 1 · moderate traffic No video yet3D guidePDFBefore you start: know your door’s handing (Step 1) and your mounting method (Step 2). Both are in the cards above.
Installation videos
There is no installation video for the 5016 yet. The 3D guide covers all three mounting methods step by step, and the printable PDF is the full manual.
Step-by-step in 3D
Free BILT app. Zoom in and change angles as you install, step by step.
- Install the free app
- Search it for your model, LH5016
Why buy from us
- Direct from Embassy’s North American seller
- The full line and every finish, in one place
- Talk to someone who knows door closers
- Volume pricing on larger orders

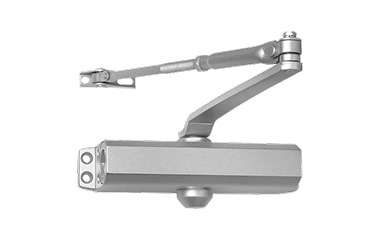

503 / 534
Medium duty aluminum · Grade 2 · light commercial and institutional No video yet3D guidePDFBefore you start: know your door’s handing (Step 1) and your mounting method (Step 2). Both are in the cards above.
Installation videos
There is no installation video for the 503 / 534 yet. The 3D guide covers all three mounting methods step by step, and the printable PDF is the full manual.
Step-by-step in 3D
Free BILT app. Zoom in and change angles as you install, step by step.
- Install the free app
- Search it for your model, LH534 or LH503
Why buy from us
- Direct from Embassy’s North American seller
- The full line and every finish, in one place
- Talk to someone who knows door closers
- Volume pricing on larger orders

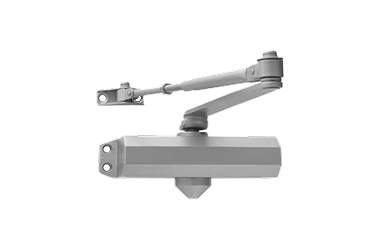

303
Standard duty adjustable cast aluminum · interior commercial doors No video yet3D guidePDFBefore you start: know your door’s handing (Step 1) and your mounting method (Step 2). Both are in the cards above.
Installation videos
There is no installation video for the 303 yet. The 3D guide covers all three mounting methods step by step, and the printable PDF is the full manual.
Step-by-step in 3D
Free BILT app. Zoom in and change angles as you install, step by step.
- Install the free app
- Search it for your model, LH303
Why buy from us
- Direct from Embassy’s North American seller
- The full line and every finish, in one place
- Talk to someone who knows door closers
- Volume pricing on larger orders

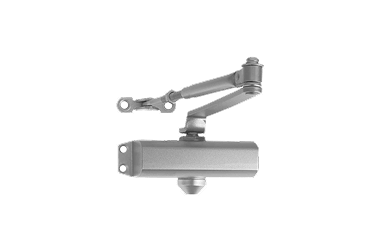

302
Light duty cast aluminum · residential and light interior doors Printed manual onlyBefore you start: know your door’s handing (Step 1) and your mounting method (Step 2). Both are in the cards above.
There is no video, 3D guide or downloadable PDF for the 302 yet. The printed manual in the box covers all three mounting methods. If you have lost it, call us on 1-888-737-6515 and we will send you a copy.
Still stuck?
Call 1-888-737-6515 or send us a message. Tell us your model number and which mounting method you are using and we will walk you through it.
